H1000A Mission Critical RF Amplifier

Discrete, rugged, portable, cellular power amplifier for public safety & emergency comms applications
  • Dual-band architecture (High/Low band)
  • Frequency ranges of 715 MHz to 2.7 GHz
  • RF operating power output: 10 Watts
  • Power Gain: Up to 43 dB
  • Networkable: Ethernet connection
  • Single TNC RF input port
  • Dual TNC (frequency-banded) output ports
  • IP66 rated enclosure and sealed ports
  • LED indicators for power and status
  • Stealth mode to turn off LEDs
  • Power detectors for RF drive detection
  • Web-enabled power control
  • Power options: Vehicle power or V-mount batteries
  • Fanless: Silent, high reliability and low maintenance

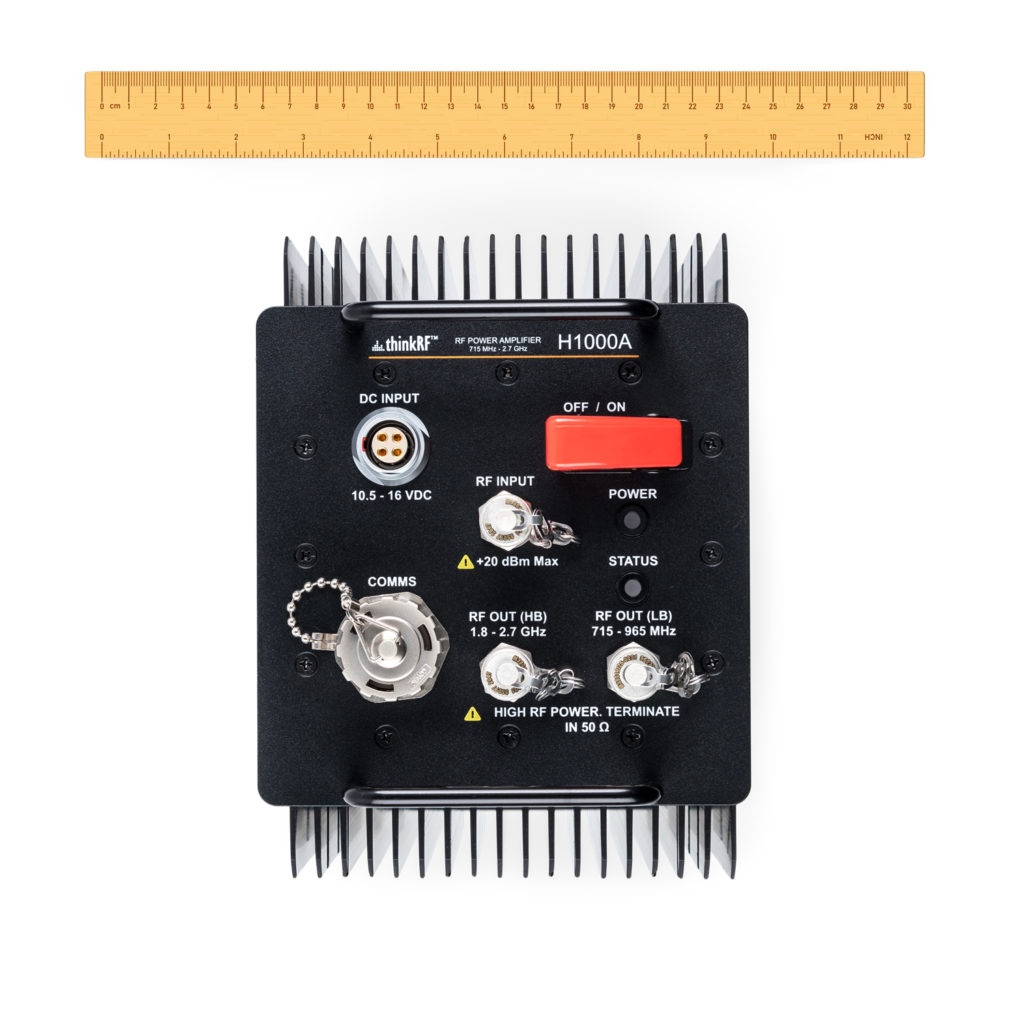

  • Compact: 267 x 227 x 200 mm (10.5” x 8.9” x 7.9“)
  • Light: < 5 kg (11 lbs.)
  • thinkRF H1000A
  • Vehicular power cable
  • Straight-through Ethernet cable
  • Two V-mount battery adapters

This thinkRF product is sold through thinkRF’s Authorized Sales Partners.

Maintenance Plan Plan for per unit per year
Power Cable
PAG Battery Mount Plate
Extended Warranty Standard Warranty is 1 year. Extended Warranty is available by purchasing a Warranty Extension at time of purchase.



DESIGNED FOR DISCRETE MISSION-CRITICAL OPERATIONS

The thinkRF H1000A is a compact, rugged, fanless, networked and remotely deployable multiband cellular power amplifier. The thinkRF H1000A’s versatile power options make it a perfect asset for use cases in homeland security, emergency communications, TSCM (non-linear junction detection) and rural communications. Hybrid-mode operation enables an uninterrupted power source when switching from vehicle power to battery power and back. The hot swappable battery feature allows the users to swap one battery at a time. The thinkRF H1000A:

thinkRF H1000A High Power RF Amplifier
DESIGNED FOR

Discrete Operation

The thinkRF H1000A is the most compact stand-alone power amplifier in its class, making it ideal for fixed, vehicular and dismounted operations. With passive, fanless cooling, it is silent and reliable.
The compact and light package is complemented with versatile power options (12V vehicle power or off-the-shelf V-mount batteries). As an option, the V-Mount battery plates can be removed for an even lighter unit or to incorporate custom mounting brackets.

DESIGNED FOR

High Availability

There are times when you have more important things to worry about than whether your power amplifier will be up for the job when you need it. Reliability was key from day one when designing the thinkRF H1000A. Fanless cooling avoids mechanical failures associated with other options. Power filtering, surge suppression and regulation protection ensure external power transients won’t affect operation. Further, the thinkRF H1000A is a smart amplifier that incorporates a microcontroller to monitor and report on the health of the unit. Prior to deployment, the user can verify that the unit is in top operating condition.
The built-in microcontroller also provides a facility for transmit power control through gain adjustment.
Seamless switching between 12V external power and batteries keeps the thinkRF H1000A running uninterrupted. Batteries running low? No problem – the two V-mount batteries can be hot swapped ensuring continuous operation.

thinkRF H1000A High Power RF Amplifier
thinkRF H1000A High Power RF Amplifier
DESIGNED FOR

Remote Operation

Through the Ethernet port, the thinkRF H1000A can be networked so that it can be operated and monitored remotely. The user can also remotely adjust the system gain and perform remote diagnostics on units that are deployed in the field.

DESIGNED FOR

Ruggedness

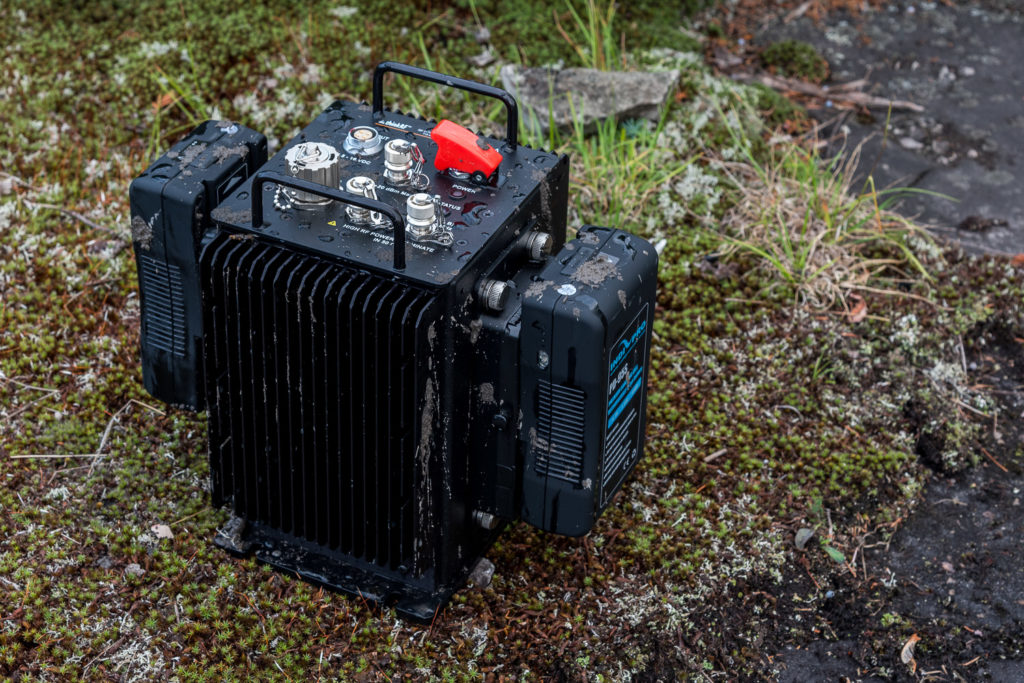

The thinkRF H1000A is designed to withstand operation in harsh conditions. An IP66 rated enclosure and connectors ensure rain and dust will not interfere with operation. Connectors are strong and secure; preventing accidental disconnection during an operation.

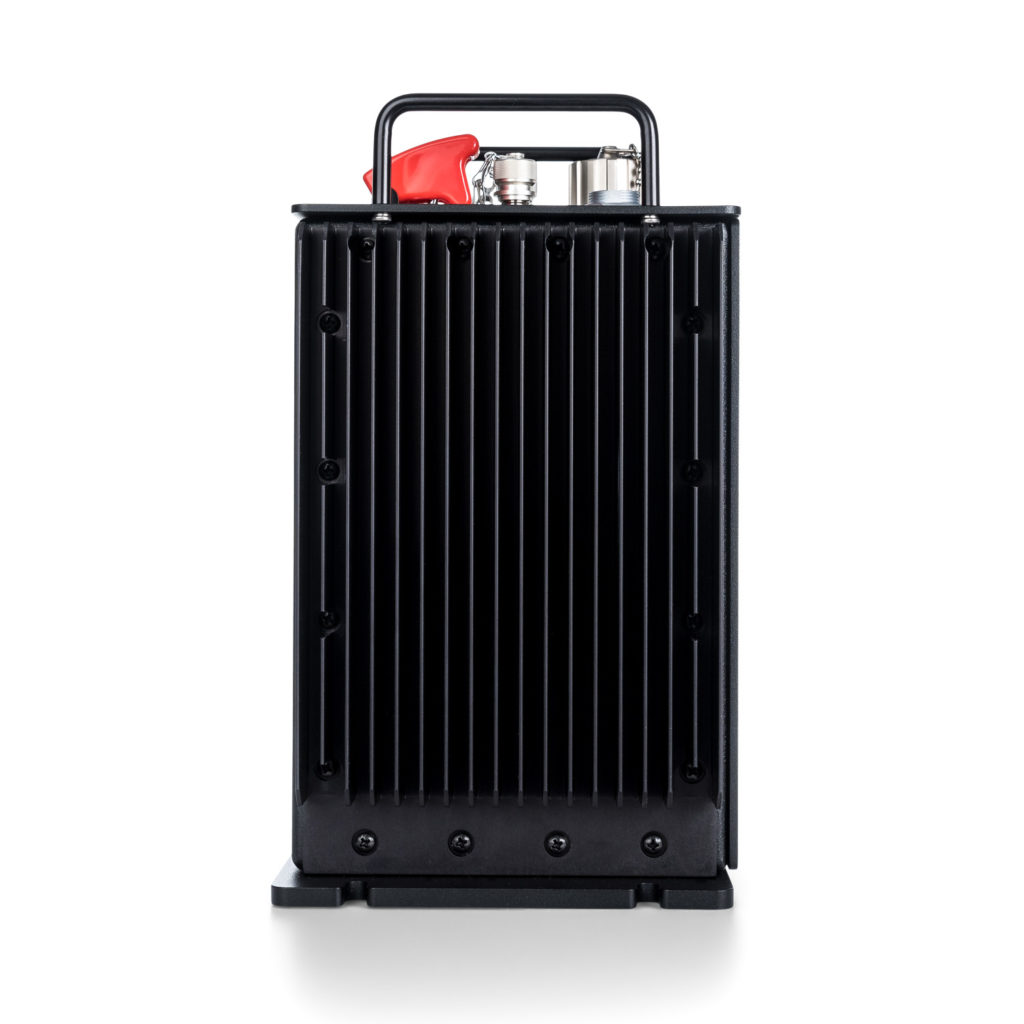

Fanless, passive cooling also ensures the thinkRF H1000A is not vulnerable to outside elements or to failures due to shock and vibration.

thinkRF H1000A High Power RF Amplifier
thinkRF H1000A High Power RF Amplifier
DESIGNED FOR

Communications

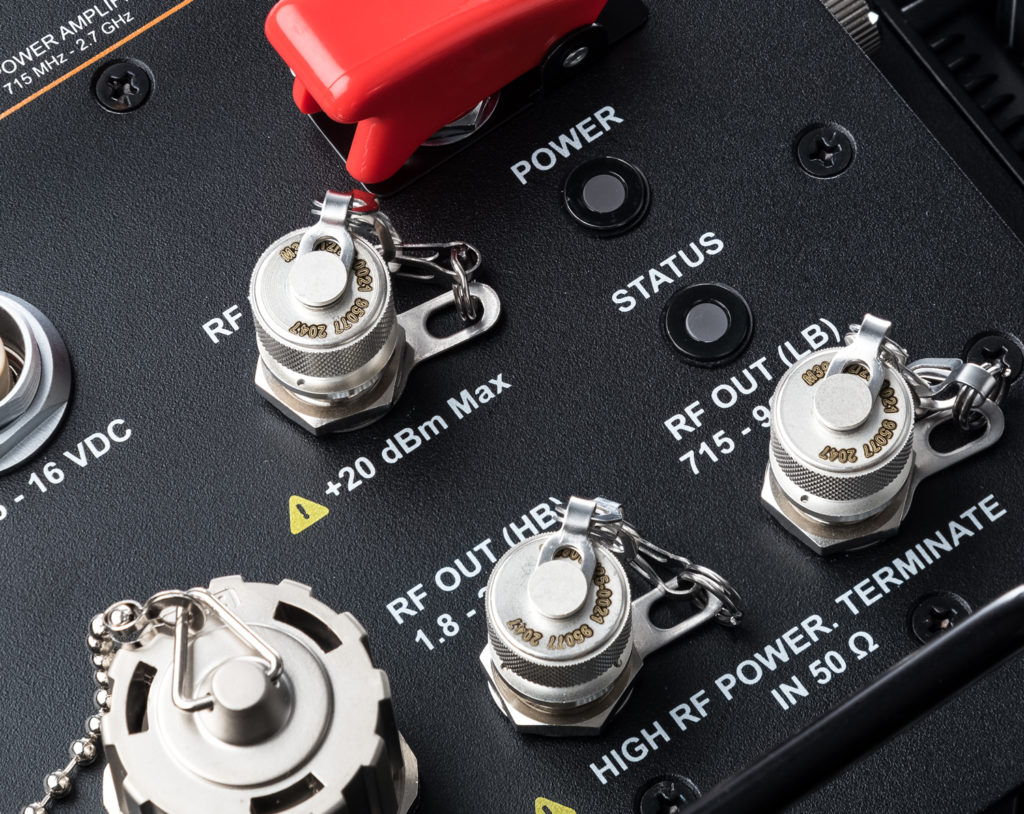

The thinkRF H1000A employs a dual-band architecture (High/Low band) for antenna optimization and a dual TNC (frequency-banded) output ports to provide a complete coverage.
You can cover mobile wireless frequency bands that occur between 715 MHz – 2.7 GHz without any changes in configuration.

DESIGNED FOR

Versatility

The thinkRF H1000A has 10 W operating power output and an adjustable gain up to 43 dB. It is designed to be used within a wider range of signal sources and a greater breath of operational scenarios than other power amplifiers with similar electrical performance.
The thinkRF H1000A can tolerate up to 10:1 VSWR output mis-match.

thinkRF H1000A High Power RF Amplifier
