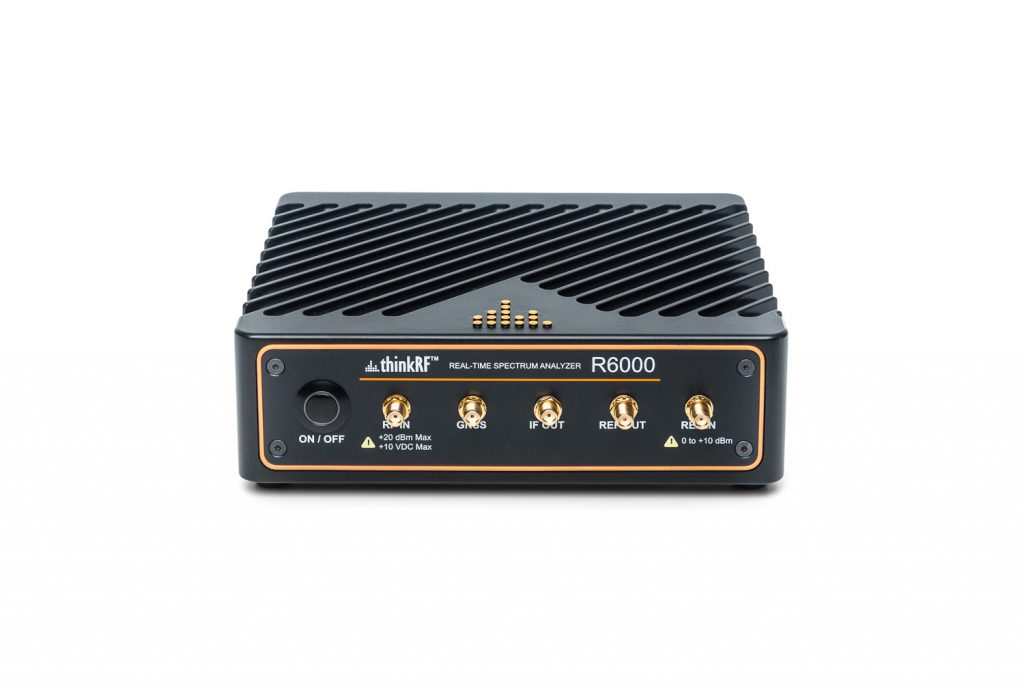

R6000 Real-Time Spectrum Analyzer

Engineered for wireless situational awareness operations
  • Frequency ranges of 9 kHz to 8 GHz
  • GNSS types supported: GPS, GLONASS, and BeiDou
  • Real-Time Bandwidth (RTBW) up to 100 MHz
  • Sweep rate of 28 GHz/s
  • Accuracy +/- 1 dB
  • 10 MHz input and output clock references for multi-unit synchronization
  • Dynamic range: 120 dB
  • Networkable: Ethernet connection
  • Compact: 18.2 x 11 x 6 cm (7.16” x 4.33” x 2.36“)
  • Light: 1.2 kg (2.6 lbs)
  • Low power consumption: 23 W @ 12V
  • thinkRF R6000 RTSA
  • Power adapter and cable
  • Straight-through Ethernet cable
  • USB console cable
  • Receiver antenna
  • GNSS antenna and cable

This thinkRF product is sold through thinkRF’s Authorized Sales Partners.

Maintenance Plan Plan for per unit per year


Weather Resistant

Weather resistant option is available for increased durability and ruggedness in challenging environments.

S1000 FREE Real-Time Spectrum Analysis software

Warranty Standard Warranty is 1 year. Extended Warranty is available by purchasing a Warranty Extension at time of purchase.


CERT

Calibration Certificate and Traceability Statement

HIGH PERFORMANCE RF APPLICATIONS FOR WIRELESS SITUATIONAL AWARENESS

The thinkRF R6000 Real-Time Spectrum Analyzer, featuring GPS, is engineered for wireless situational awareness operations, including RF drive testing, coverage mapping, propagation analysis, direction finding, transmitter localization, and spectrum monitoring. Its GPS integration allows for precise field analysis of complex waveforms, offering insights into the location and time of measurements.

Marked by high performance, the R6000 stands out for its industry-leading RF performance, compactness, and versatility.

The R6000 is not only compact and lightweight, but also operates without a fan, enhancing its spectrum performance and reducing power consumption for superior portability in outdoor and mobile settings.

With its superior spectral performance, the R6000 facilitates more accurate analysis.

It’s designed with reduced size, weight, and power requirements (SWaP), enhancing portability.

SECURE

Wireless Detection

With faster scan rates and improved RF performance, the thinkRF R6000 is designed to support wireless security applications such as Tactical Surveillance Counter Measures (TSCM) and Signal intelligence (SIGINT) applications. With its enhanced scan rates, R6000 can sweep across wide frequency ranges quickly, allowing users to detect, identify, and analyze transient and brief signals that are often missed by traditional spectrum analyzers. This capability is crucial for TSCM operations where detecting eavesdropping devices and unauthorized transmissions is paramount. The speed at which the R6000 operates enables security teams to more effectively sweep environments for threats, ensuring the confidentiality and integrity of sensitive information.

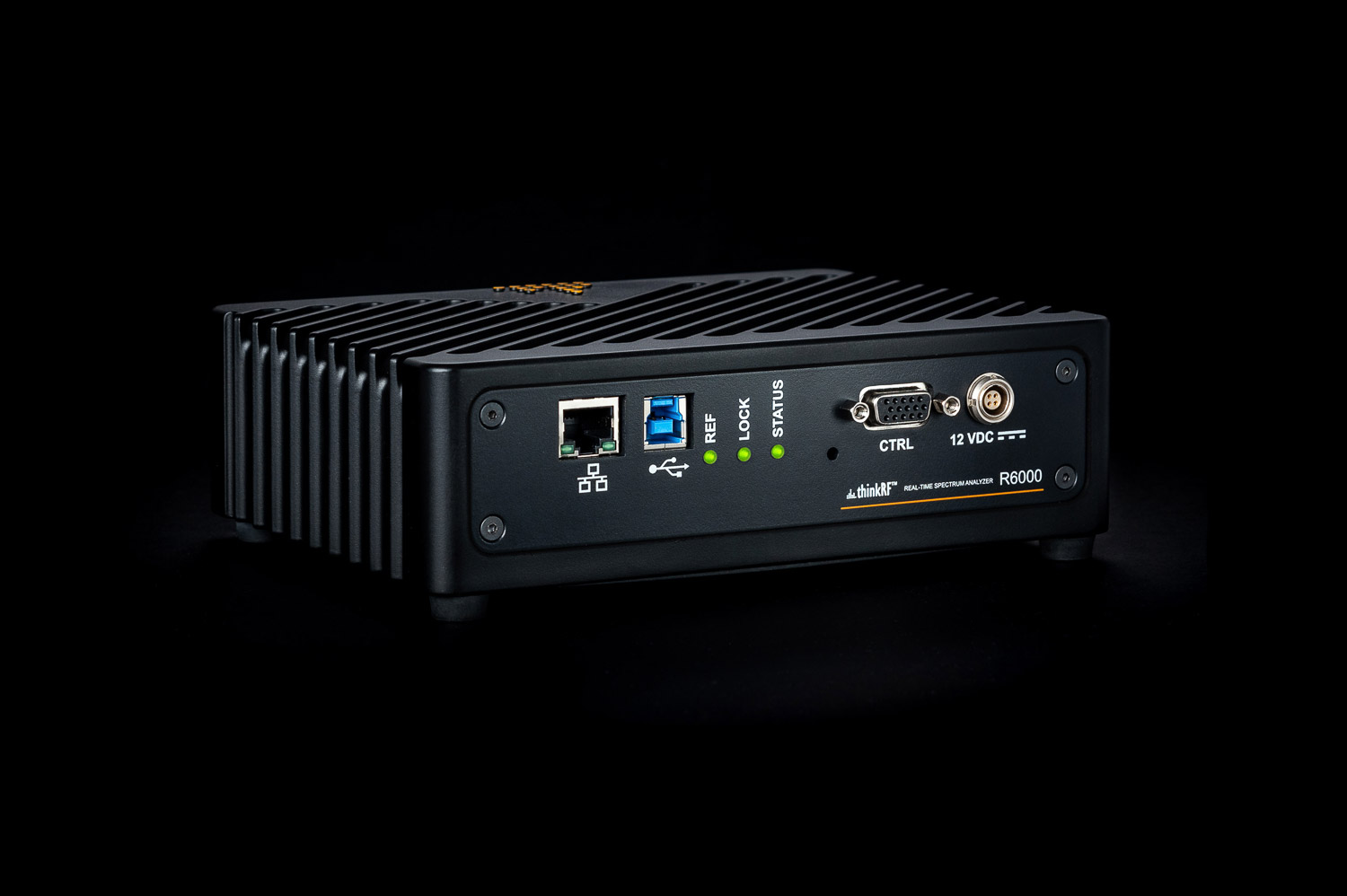

thinkRF R6000 Real-Time Spectrum Analyzer

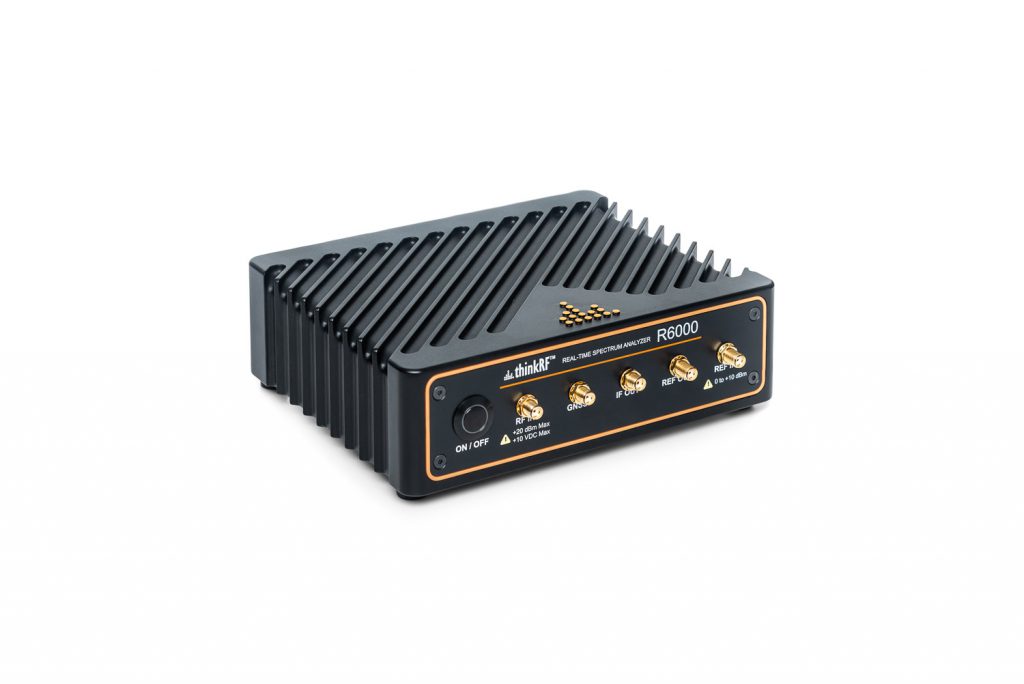

thinkRF R6000 Real-Time Spectrum Analyzer
BUILT-IN

GNSS/GPS

Underpinning all mobile wireless situational awareness applications is the ability to know the location and time of measurements. The thinkRF R6000 Real-Time Spectrum Analyzer with GPS synchronizes positional and temporal information with signal information to provide you with a complete map of the signal environment.

NETWORKED &

Remote Deployable

The thinkRF R6000 Real-Time Spectrum Analyzer is networkable and suitable for network deployment for improved RF detection range and ability to make time synchronous spectral measurements. This enables emitter location and direction finding (DF) applications, propagation studies and other applications, and allows users to easily make geolocation measurements on signals of interest using either time (through time difference of arrival, TDOA) or power (through received signal strength, RSS). The thinkRF R6000 Real-Time Spectrum Analyzer analyzers can be synchronized using two different methods: GPS (for outside deployments) and using the 10 MHz reference in a master-slave configuration (for indoor deployments or wherever GPS may be absent).

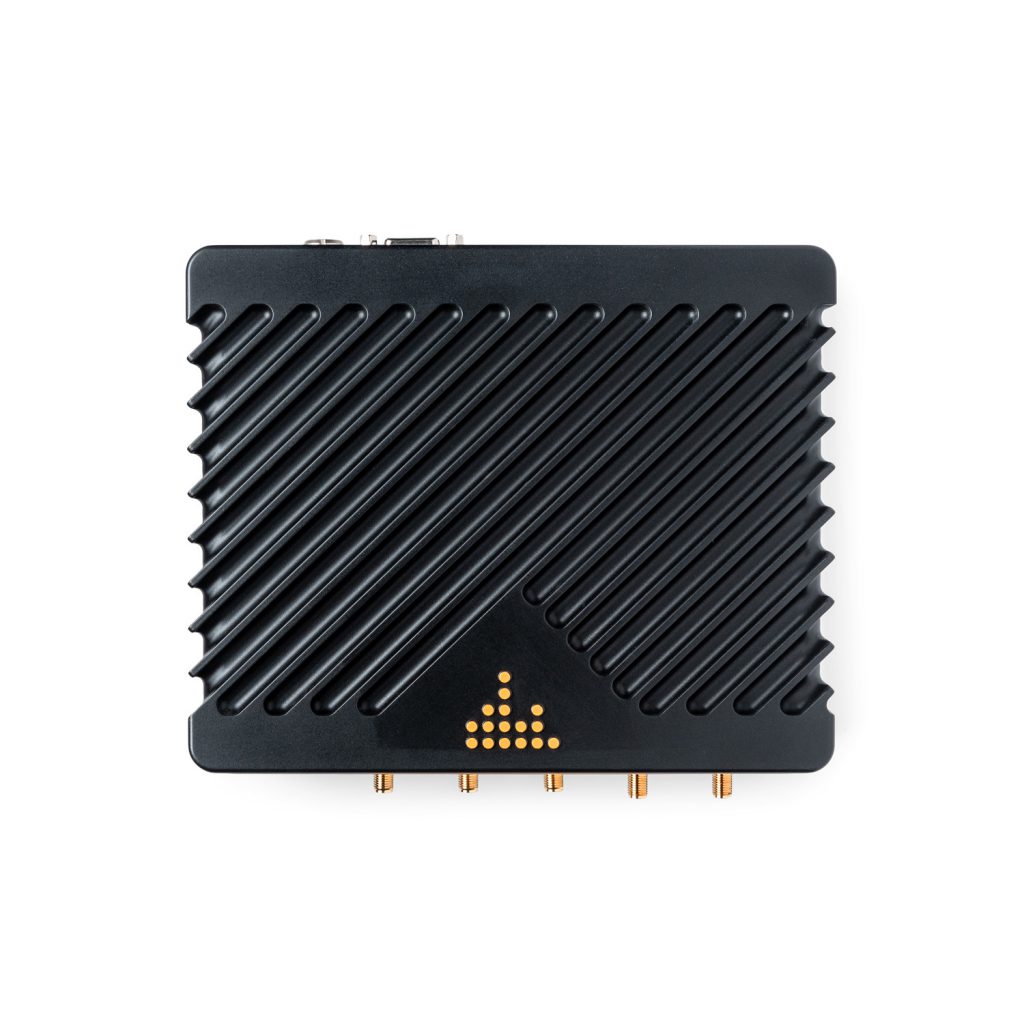

thinkRF R6000 Real-Time Spectrum Analyzer
thinkRF R6000 Real-Time Spectrum Analyzer
SWaP

Compact & PC-Driven

The thinkRF R6000 Real-Time Spectrum Analyzer is designed for efficiency and mobility, easily connecting to standard PCs. Compact, lightweight, and power-efficient, it’s suitable for use in remote locations or vehicles such as trucks, cars, military vehicles, UAVs, and boats. It serves as a sleek alternative to traditional, bulky spectrum analyzers for lab, field, or mobile use.

APIs & PROTOCOLS

Proven Integrations

thinkRF’s diverse ecosystem of application partners ensures tailored solutions to meet specific project requirements, emphasizing the adaptability and wide-ranging support available to users across various applications.
The LibTRF API, a robust multi-platform library designed for integrating applications with thinkRF’s Real-Time Spectrum Analyzer (RTSA) devices, including the R6000 series, provides advanced signal processing capabilities for easy integration into user application code. This integration facilitates developers, engineers, and program managers in navigating the complexities of the spectrum environment, offering a comprehensive view and understanding essential for effective analysis and decision-making.

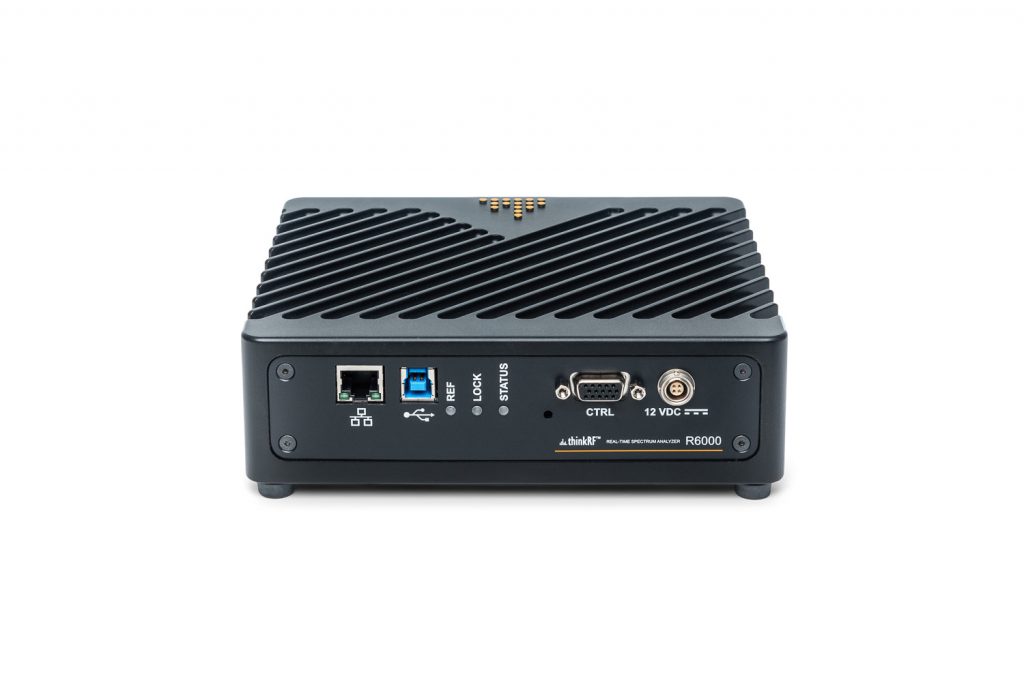

thinkRF R6000 Real-Time Spectrum Analyzer

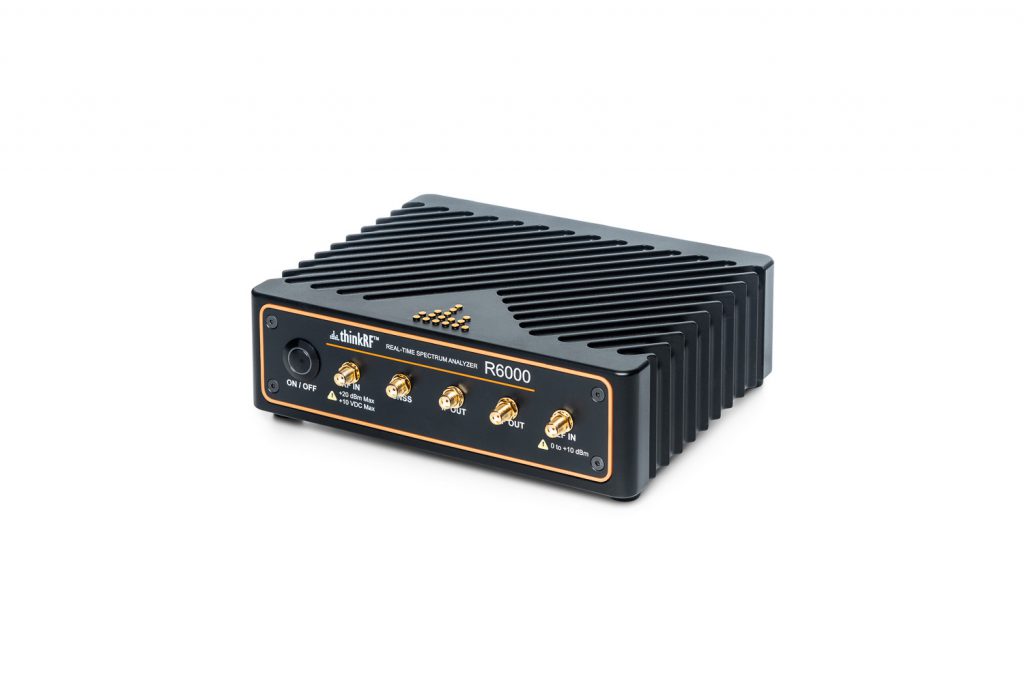

thinkRF R6000 Real-Time Spectrum Analyzer
APIs & PROTOCOLS

Proven Integrations

thinkRF’s diverse ecosystem of application partners ensures tailored solutions to meet specific project requirements, emphasizing the adaptability and wide-ranging support available to users across various applications.
The LibTRF API, a robust multi-platform library designed for integrating applications with thinkRF’s Real-Time Spectrum Analyzer (RTSA) devices, including the R6000 series, provides advanced signal processing capabilities for easy integration into user application code. This integration facilitates developers, engineers, and program managers in navigating the complexities of the spectrum environment, offering a comprehensive view and understanding essential for effective analysis and decision-making.

Ready to Demo the thinkRF R6000?

Engineered for wireless situational awareness operations like RF drive testing, coverage mapping, propagation analysis, direction finding, transmitter localization, and spectrum monitoring
