Single Channel
UD Box 5G

Extend your RF test equipment to 5G mmWave economically
  • RF I/O 24 – 44 GHz
  • IF I/O 0.01 – 14 GHz
  • Built-in LO with precise OCXO
  • LO Frequency (Controllable) 24 – 44 GHz
  • Single channel
  • 10/100 MHz synchronization
  • n257/n258/n260 bands
  • Compact: 14.3 x 15.2 x 6.5 cm (5.6” x 5.9” x 2.6“)
  • Light: 0.9 Kg (2.0 lb.)
  • Low power consumption: 12.8 W
  • Single Channel UD Box 5G
  • Adapter & Adapter cable
  • Ethernet Cable
  • User Guide
  • Test Report
  • Certificate

This thinkRF product is sold through thinkRF’s Authorized Sales Partners.

Maintenance Plan Plan for per unit per year

CERT Calibration Certificate and Traceability Statement



THE BEST 5G NR DEVELOPMENT TOOL FOR WIRELESS EQUIPMENT OEMs, TELECOM CARRIERS & BASEBAND RESEARCHERS

Wireless equipment OEMs, baseband researchers and telecom carriers can easily verify the beam tracking algorithm and protocols with the thinkRF TMYTEK UD Box 5G! Now, you can retain existing field, lab, and manufacturing test equipment, extend the life of your investment, and reduce time to market and costs when measuring 5G mmWave signals.
The UD Box 5G will easily upgrade most of the sub-6 GHz instruments and make them an ideal component for 5G production testing.

Single Channel UD Box 5G
SWaP

Compact Form Factor

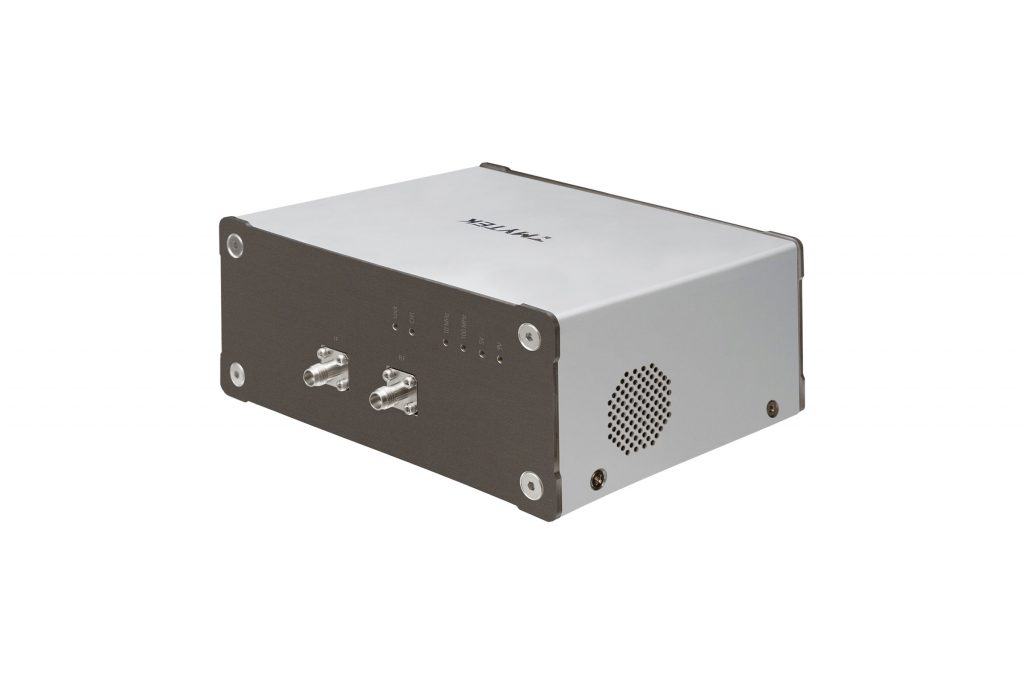

Measuring 143 x 152 x 65 mm (5.6” x 5.9” x 2.6“) and weighing only 0.9 Kg (2.0 lbs), the thinkRF TMYTEK UD Box 5G features a compact design that makes it portable, versatile, and easy to use for 5G analysis in production testing without adding significant size, weight, and power (SWaP) requirements.

SIMPLE CONTROL

Ethernet Connection

The thinkRF TMYTEK UD Box 5G can be controlled using SCPI commands over Ethernet. Using a few simple commands, all the functions of the UD Box 5G can easily be controlled.

Single Channel UD Box 5G
Single Channel UD Box 5G
UNIVERSAL

Platform

The thinkRF TMYTEK UD Box 5G works with third-party test equipment, RF Spectrum Analyzers, Software-Defined Radios and interfaces.

MULTI-UNIT

Synchronization Capability

The thinkRF TMYTEK UD Box 5G includes 10 MHz output clock references to support clock synchronization with external modules. It also supports synchronization of multiple UD Box 5Gs using the built-in 100 MHz synchronization feature.

Single Channel UD Box 5G
Single Channel UD Box 5G
APIs & PROTOCOLS

Proven Integrations

thinkRF and its application ecosystem helps developers, engineers, and program manager see the full picture in complex spectrum environment. thinkRF has a wide variety of application partners depending on your requirements.

BEST PRICE – PERFORMANCE RATIO

on The Market

RF Up/Downconverters are one of the most economical and cost-effective methods for increasing the frequency performance of RF signal analysis systems. In the new world of 5G networks, a downconverter can reduce time to market and costs for mobile operators and system integrators. The thinkRF series of RF downconverters / tuners are designed for maximum performance and interoperability.

Single Channel UD Box 5G
Ready to Demo The thinkRF TMYTEK UD Box 5G?

Extend your RF test equipment to 5G mmWave economically!
