Spectraware S1000

Spectrum Analysis Software

Comprehensive data visualization and measurement tools for both spectrum and signal analysis.

*S1000 works only with the thinkRF RTSA.
*It’s Linux compatible as well.

  • Channel power measurement
  • Occupied bandwidth measurement
  • Demodulation for deeper analysis
  • Gapless streaming
  • View constellation, frequency domain, time domain, spectrogram and persistence
  • Record/playback
  • 1 thinkRF Spectraware S1000 Spectrum Analysis Software

This thinkRF product can be downloaded for FREE.

thinkRF Spectraware S1000 Real-Time Spectrum Analysis Software User Guide

EXTRACT THE ORIGINAL INFORMATION BEARING SIGNAL FROM A CARRIER WAVE FOR A DEEPER SIGNAL ANALYSIS

The thinkRF Spectrum Analysis Software features an advanced graphical user interface (GUI) that has been designed with the end-user in mind. Common functions, including Frequency, Bandwidth, and Amplitude are always visible, while all other settings are accessible with a minimum number of clicks to keep the view of the spectrum front and center. Customized settings can be saved and reloaded to simplify the setup of common applications and uses.
Coupled with leading the thinkRF Real-Time Spectrum Analyzers, users gain access to the performance, capabilities, and functions needed to conduct spectrum and signal analysis for regulatory and intelligence monitoring and telecom deployment optimization. Comprehensive data visualization modes, automated measurement tools, and demodulation capabilities provide users with enhanced usability in a cost-effective and intuitive application.

Cost-effective spectrum and signal analysis software that doesn’t sacrifice important functions or performance

Built-in software corrections for spur mitigation and IQ offset errors that could impact the accuracy of the data

Easy to use, intuitive software presented in a clean, professional package

Linux compatible

thinkRF Real-Time Spectrum Analysis Software

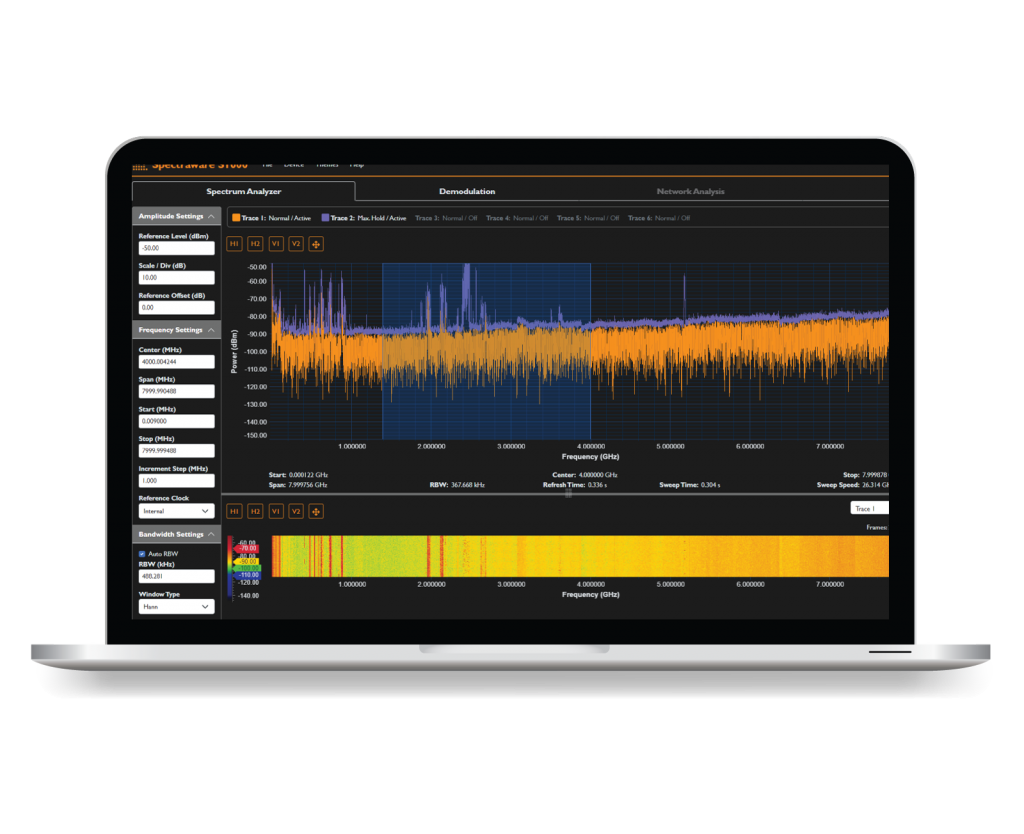

Comprehensive

Data Visualization

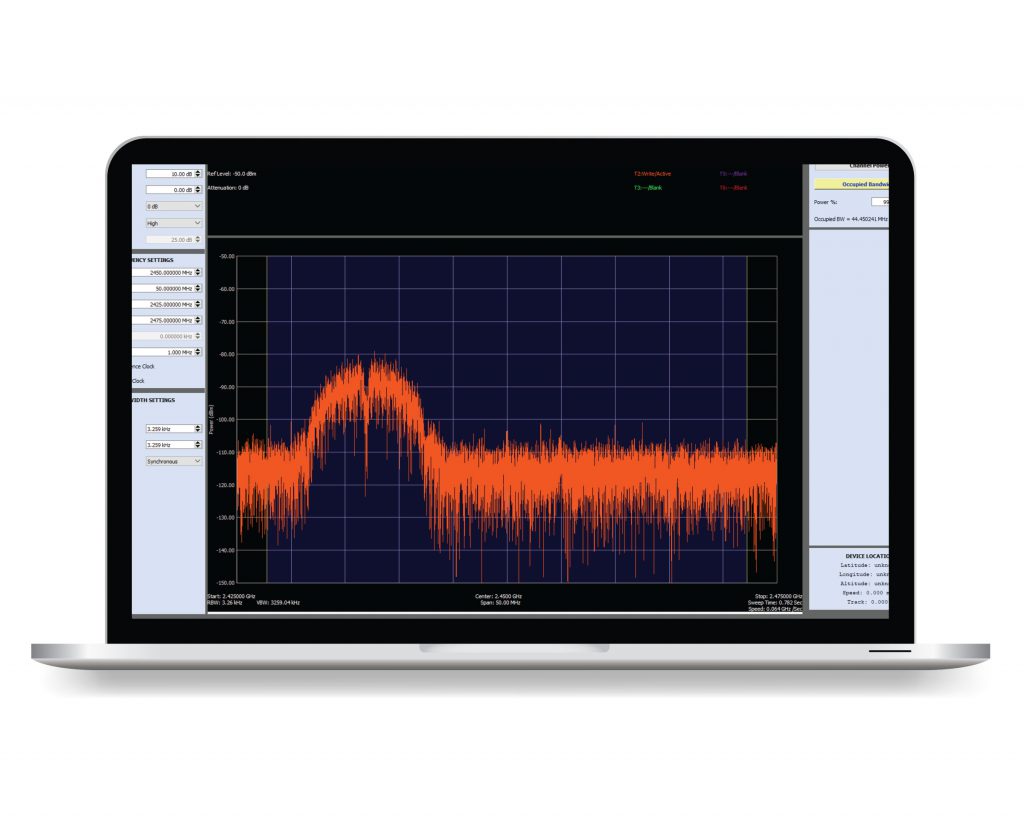

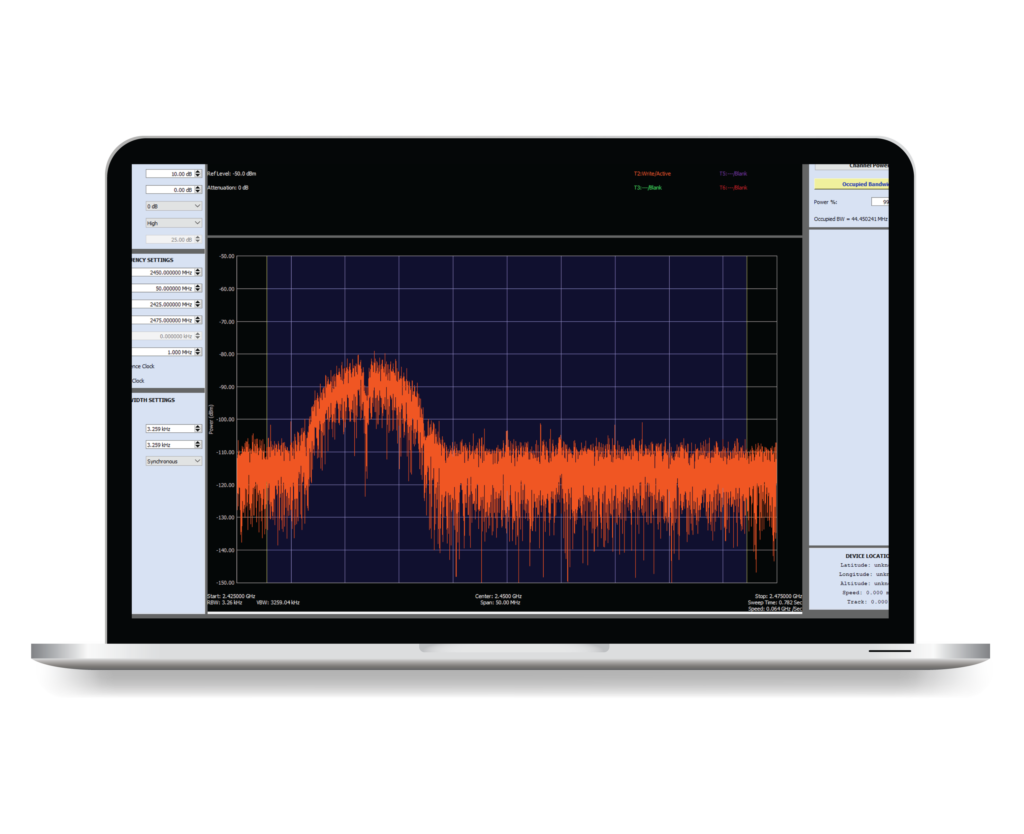

With 100 MHz, 40 MHz, 10 MHz, or 100 kHz real-time bandwidth (RTBW), the Spectraware S1000 software is powerful enough for any application. Featuring three visualization modes – Spectrogram, Persistence, and Time Domain – you can select the best view depending on your application and analysis requirements.

*S1000 works only with the thinkRF RTSA

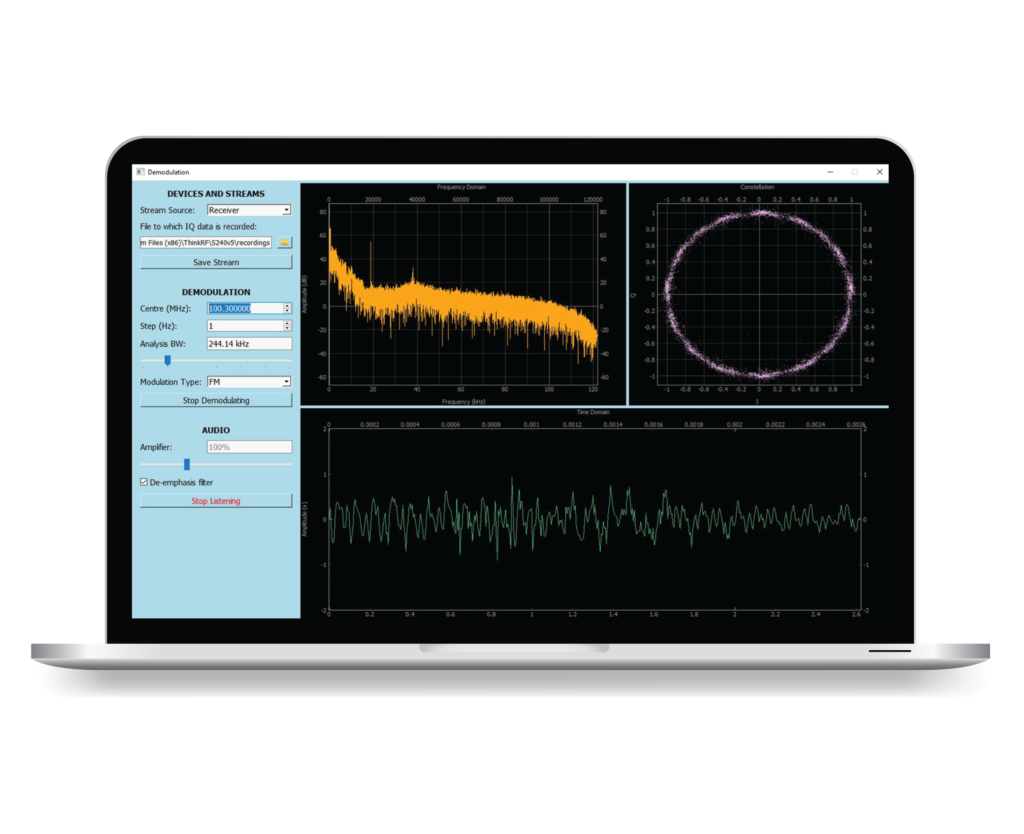

Demodulation

for Signal Analysis

Conduct both spectrum and signal analysis and extract the original information-bearing signal from the carrier wave with demodulation capabilities. Gapless streaming allows seamless playback of demodulated audio which can be amplified from 0% – 300%. View Constellation, Frequency Domain, and Time Domain graphs in the clean, professional interface and record and play back streams with full demodulation and graphing support.

*S1000 works only with the thinkRF RTSA

thinkRF Real-Time Spectrum Analysis Software
thinkRF Real-Time Spectrum Analysis Software

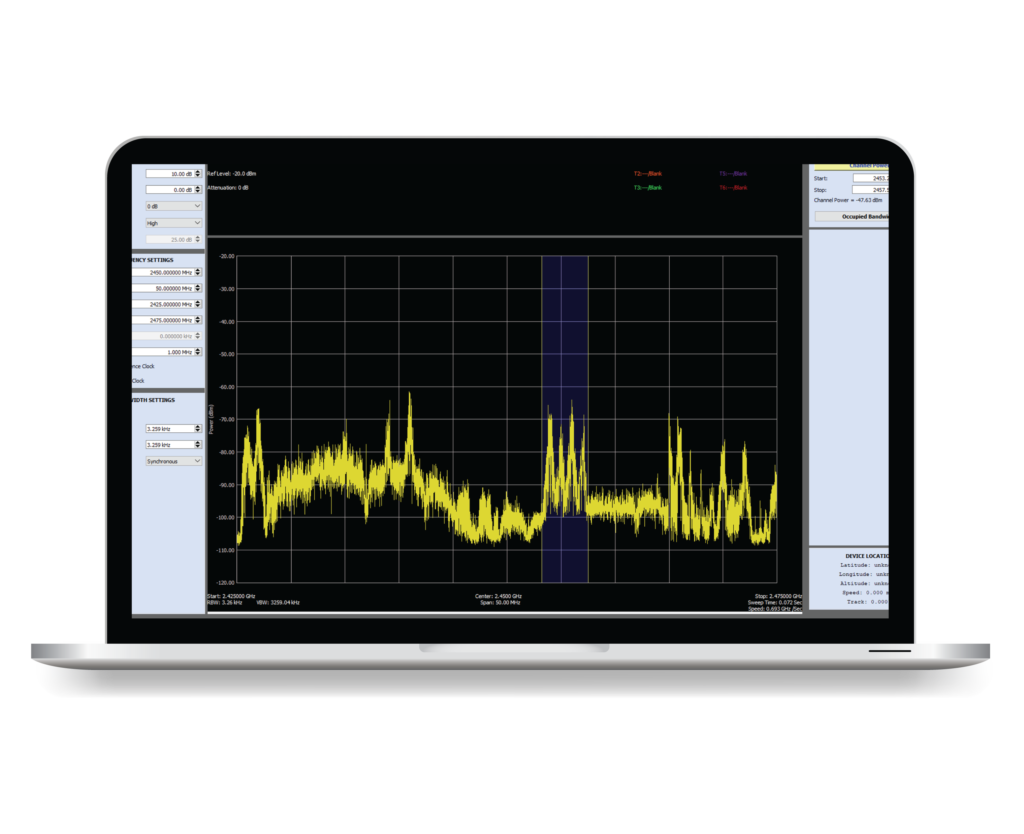

Powerful

Measurement Tools

The Spectraware S1000 software provides the capabilities you need with a large collection of standard features and functions. Automatic measurements including Channel Power and Occupied Bandwidth, built-in horizontal and vertical cursors, multiple markers, and various traces are all available to analyze all signal related parameters.

*S1000 works only with the thinkRF RTSA

Record and Save

for Future Analysis

Easily save and record data for future in-depth analysis that is difficult to do in real-time. Users can either manually save data for any duration of time or set up triggers to automatically capture and save only if the signal falls within a specified range. This makes the file size more management and allows the user to capture only the signal of interest.

*S1000 works only with the thinkRF RTSA

thinkRF Real-Time Spectrum Analysis Software
Download the all NEW thinkRF Spectrum Analysis Software for FREE

Gain access to the performance, capabilities, and functions needed to conduct
spectrum and signal analysis!

*S1000 works only with the thinkRF RTSA
