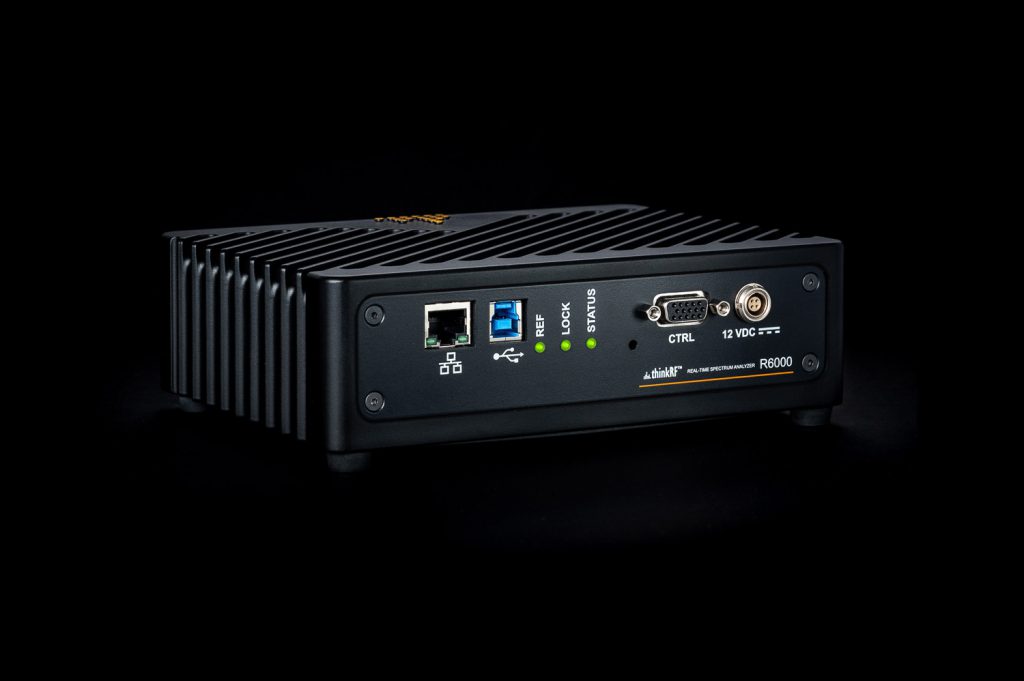

R6000 Real-Time Spectrum Analyzer
Built for RF and wireless test engineers, spectrum monitoring and surveillance teams, and system integrators needing flexible interface options, the thinkRF R6000 is the smallest real-time spectrum analyzer in the thinkRF portfolio, scanning RF spectrum from 9 kHz to 8 GHz with 100 MHz of instantaneous bandwidth and, over its USB 3.0 interface, a sweep rate of up to 100 GHz/s in a fanless platform with integrated GNSS. Designed for outdoor, mobile, and distributed deployments, it also connects over Ethernet or PCIe and integrates with custom applications via SCPI, VITA-49 VRT, and LibTRF APIs. Paired with thinkRF’s Spectraware software, it combines real-time signal analysis with situational awareness in the industry’s lowest SWaP form factor.
Key capabilities
- Scan RF spectrum from 9 kHz to 8 GHz
- Capture signals in real-time with 100 MHz instantaneous bandwidth
- Scan at up to 65 GHz/s (Ethernet) or 100 GHz/s (USB)
- Capture transient signals with real-time acquisition memory and hardware triggering
- Timestamp captures with ±5 ns resolution for geolocation and timing applications
- Connect via Ethernet, USB 3.0
- Transfer data at up to 1.2 Gb/s via USB
- Analyze signals in real-time with Spectraware spectrum analysis software
- Deploy in the lab, field, or vehicle and operate remotely
- Integrate with custom applications via SCPI, VITA-49 VRT, and LibTRF APIs
How it works
- Connects via Ethernet, USB 3.0for control and data transfer
- Super-heterodyne receiver architecture covers 9 kHz to 8 GHz
- Integrated GNSS receiver embeds positional and timing data into every capture
- Spectraware provides visualization, measurement, and demodulation capabilities
Who it’s for
- RF and wireless test engineers needing high-speed data throughput
- Spectrum monitoring and surveillance teams
- Defense and signals intelligence (SIGINT) operators
- System integrators needing flexible interface options
- Geolocation and direction-finding operators
- Network deployment and optimization engineers
Engineered for wireless situational awareness operations
High Performance RF Applications for Wireless Situational Awareness
The thinkRF R6000 Real-Time Spectrum Analyzer with GPS/GNSS is engineered for wireless situational awareness operations, including RF drive testing, coverage mapping, propagation analysis, direction finding, transmitter localization, and spectrum monitoring. Its highly optimizable architecture delivers lab-grade performance in a compact, fanless, portable package.
Built on an advanced super-heterodyne radio design, the thinkRF R6000 covers 9 kHz to 8 GHz with 100 MHz instantaneous bandwidth and sweep rates of up to 65 GHz/s via Ethernet and 100 GHz/s via USB 3.0 – enabling real-time capture of transient and complex signals in demanding field environments.
Integrated GNSS provides precise location and time-stamping of every measurement, while high-speed USB 3.0 connectivity supports data transfer rates of up to 1.2 Gb/s for applications requiring maximum throughput.
Engineered for wireless situational awareness with industry-leading RF performance – 100 MHz instantaneous bandwidth, sweep rates of 65 GHz/s (Ethernet) or 100 GHz/s (USB 3.0), and ±5 ns timestamp resolution.
Compact, fanless, and lightweight at 2.2 kg – reduced size, weight, and power (SWaP) requirements for superior portability in outdoor, mobile, and vehicle-based deployments.
Up to 100 MHz real-time instantaneous bandwidth and sweep rates of 65 GHz/s (Ethernet) or 100 GHz/s (USB 3.0) deliver improved spectral performance for deeper analysis of complex waveforms.
Designed for TSCM and SIGINT applications – enhanced scan rates detect transient and brief signals that traditional spectrum analyzers typically miss.
High Performance Real-Time Spectrum Analyzer
The thinkRF R6000 is a high-performance real-time spectrum analyzer designed for today’s demanding spectrum monitoring needs. Its compact form factor delivers lab-grade performance covering 9 kHz to 8 GHz with 100 MHz instantaneous bandwidth.
Advanced super-heterodyne radio design, high-speed Ethernet and USB 3.0 connectivity, and integrated GNSS combine to enable accurate, real-time analysis with precise location and time-stamping of every capture.
The thinkRF R6000 is well-suited for field deployments and remote monitoring across a wide range of applications including regulatory compliance, signals intelligence (SIGINT), and RF scanning.
Secure Wireless Detection
The thinkRF R6000 is designed to support wireless security applications including Technical Surveillance Countermeasures (TSCM) and Signals Intelligence (SIGINT). Its enhanced scan rates allow users to sweep across wide frequency ranges rapidly, detecting transient and brief signals that traditional spectrum analyzers typically miss.
This capability is critical for TSCM operations where detecting eavesdropping devices and unauthorized transmissions is paramount. The speed at which the thinkRF R6000 operates enables security teams to sweep environments more effectively, protecting the confidentiality and integrity of sensitive information.
Built-in GNSS/GPS
The thinkRF R6000 synchronizes positional and temporal information with signal data, giving users a complete map of the signal environment with every measurement. Timestamps are captured with ±5 ns resolution, enabling precise geolocation and timing applications.
GPS and GNSS data is embedded directly into VITA-49 VRT data packets, enabling seamless correlation between RF measurements and geographic coordinates in downstream analysis tools.
Networked and Remote Deployable
The thinkRF R6000 is designed for networked deployment, supporting time-synchronous spectral measurements across distributed sensor arrays. This enables emitter location, direction finding (DF), and propagation study applications across wide geographic areas.
Geolocation measurements can be performed using time-based techniques (Time Difference of Arrival – TDOA) or power-based techniques (Received Signal Strength – RSS), depending on deployment requirements.
Multi-unit synchronization is supported via two methods: GPS for outdoor deployments, and a 10 MHz reference in a master-slave configuration for indoor deployments or environments where GPS is unavailable.
SWaP Compact & PC-Driven
The thinkRF R6000 connects to standard PCs via Ethernet or USB 3.0, offering flexible connectivity options for lab, field, and mobile deployments. Its compact, lightweight, and power-efficient design makes it well-suited for use in remote locations or vehicles including trucks, cars, military vehicles, UAVs, and boats.
Unlike traditional bulky spectrum analyzers, the thinkRF R6000 delivers professional-grade performance in a form factor that fits any deployment scenario.
APIs & Protocols Proven Integrations
The thinkRF R6000 supports integration with custom applications and third-party software through three open APIs:
● SCPI – instrument control compatibility with standard test automation frameworks
● VITA-49 VRT – standardized data streaming with embedded GNSS metadata
● LibTRF – robust, multi-platform C/C++ library for direct hardware access and custom application development
thinkRF’s application ecosystem provides additional partner software options tailored to specific project requirements across TSCM, SIGINT, drive testing, and spectrum monitoring applications.
| Maintenance Plan | Plan for per unit per year |
Weather Resistant | Weather resistant option is available for increased durability and ruggedness in challenging environments. |
| SpectrawareTM | Real-Time Spectrum Analysis software. Download > |
| Warranty | Standard Warranty is 1 year. Extended Warranty is available by purchasing a Warranty Extension at time of purchase. |
CERT | Calibration Certificate and Traceability Statement |
