Spectraware Spectrum Analysis Software
A spectrum analysis software platform that provides real-time data visualization, measurement tools, and demodulation capabilities for RF monitoring and signal intelligence. Spectraware powers the Spectrum Viewer application within SXM, enabling remote spectrum observation from any location without field equipment. It also operates standalone with thinkRF’s R5550, R5750, and R6000 real-time spectrum analyzers for on-site analysis. Designed for telecom operators, regulators, SIGINT practitioners, and TSCM professionals, Spectraware delivers professional-grade spectrum analysis in a clean, intuitive interface compatible with Windows and Linux environments.
Key capabilities
- Visualize RF spectrum in four modes: Frequency Domain, Spectrogram, Persistence, and Time Domain
- Demodulate AM/FM signals with gapless streaming and audio playback
- Measure Channel Power for Wi-Fi, Bluetooth, and 3G/4G/5G/LTE signals
- Measure Occupied Bandwidth centered on the assigned channel frequency
- Configure up to 6 traces: Clear/Write, Trace Average, Max Hold, and Min Hold
- Apply up to 6 markers with Normal, Tracking, Delta, and Fixed modes
- View IQ Constellation, Frequency Domain, and Time Domain graphs simultaneously
- Record RF captures and play back with full demodulation and graphing support
- Export data to CSV with timestamps for post-analysis
- Display real-time GPS tracking data from connected R5750

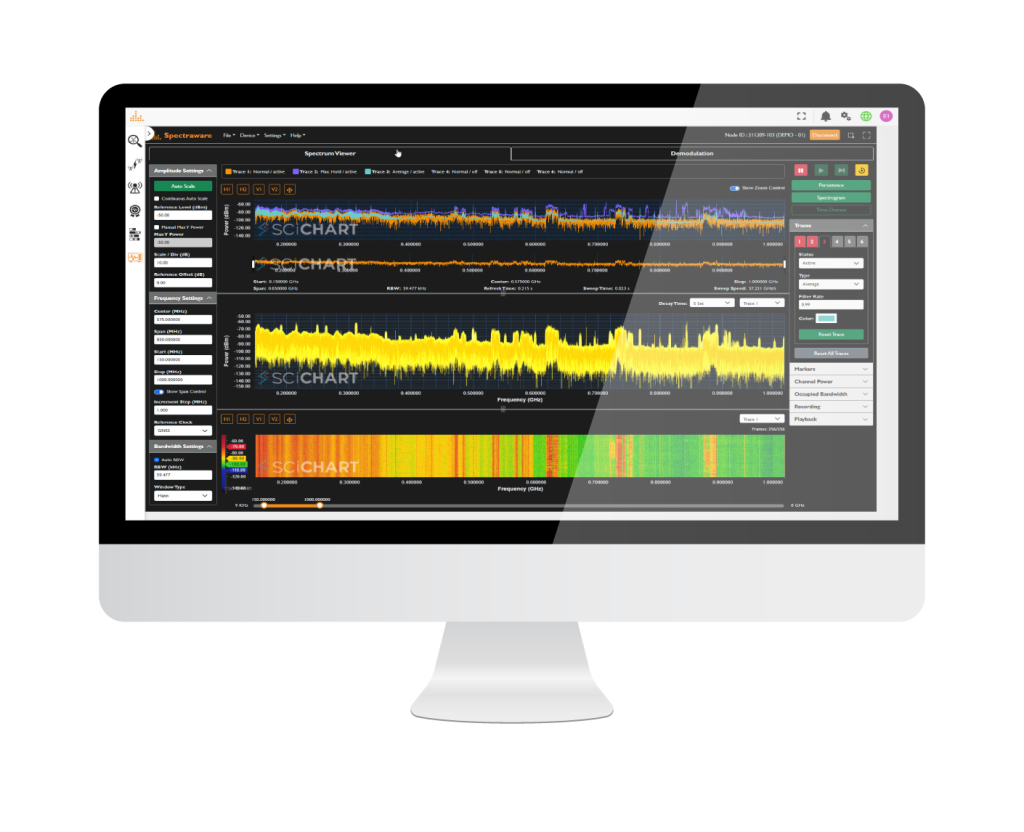

- Inspect live RF spectrum remotely via Spectrum Viewer inside the SXM Dashboard
- Compatible with R5500, R5550, R5750, and R6000 series RTSAs
How it works
With thinkRF RTSAs:
- Connects to a thinkRF RTSA via Ethernet using the LibTRF API
- User controls center frequency, span, and bandwidth through the intuitive GUI
- Real-time IQ data streams from the RTSA and is processed and displayed instantly
- Visualization mode is selected with a single click and views can be stacked
- Channel Power and Occupied Bandwidth measurements calculate automatically
- Captures are recorded to disk and played back with full demodulation support
Via SXM Dashboard:
- Spectrum Viewer is accessed directly from inside the SXM Dashboard
- Users connect to live SXM nodes remotely and inspect RF spectrum in real-time
- No additional software installation required – browser-based access from anywhere
Who it’s for
- RF and wireless test engineers
- Spectrum monitoring and surveillance teams
- Telecom deployment and optimization teams
- Defense and signals intelligence operators
- Research and academic institutions
Three visualization modes. Automated measurements. Professional demodulation. Windows and Linux compatible.*.
*Spectraware works only with the thinkRF RTSA and SXM. Windows & Linux compatible.
Precision Spectrum and Signal Analysis for Every Application
Spectraware integrates with thinkRF Real-Time Spectrum Analyzers and powers the Spectrum Viewer application within SXM. Whether analyzing signals on-site with portable hardware or monitoring remotely through a distributed sensor network, users access the same professional-grade visualization modes, automated measurements, and demodulation capabilities. Frequency, Bandwidth, and Amplitude controls remain visible; all other settings are accessible within two clicks. Customized configurations can be saved and reloaded for common operational scenarios.
Seamlessly integrates with thinkRF Real-Time Spectrum Analyzers and SXM – no additional setup required.
Perform deep signal analysis remotely or on-site – no field equipment or personnel deployment required.
Designed for the end user – a clean, intuitive interface with all key functions visible and all settings within reach.
Scales from a single site to a nationwide deployment – no dedicated hardware required at every location.
Comprehensive Data Visualization
Spectraware delivers flexible real-time bandwidth – 100 kHz, 10 MHz, 40 MHz, or 100 MHz – enabling everything from fine-grained signal inspection to wideband spectrum monitoring across any application. Three visualization modes allow users to instantly adapt their view to match the analysis at hand, so the right picture of the spectrum is always within reach:
● Spectrogram – color-coded view of spectrum changes over time
● Persistence – visualizes signal duration and intensity decay
● Time Domain – time-based signal waveform view
Powerful Measurement Tools
Spectraware provides a comprehensive set of measurement tools for signal analysis:
● Automatic measurements – Channel Power and Occupied Bandwidth
● Built-in horizontal and vertical cursors
● Multiple markers with peak search and delta measurement
● Multiple traces for comparison and analysis
Record and Save for Future Analysis
Easily save and record data for future in-depth analysis that is difficult to do in real-time. Users can either manually save data for any duration of time or set up triggers to automatically capture and save only if the signal falls within a specified range. This makes the file size more manageable and allows the user to capture only the signal of interest.
Demodulation for Signal Analysis
Spectraware extracts the original information-bearing signal from the carrier wave, enabling both spectrum and signal analysis in a single workflow. Gapless streaming allows seamless playback of demodulated audio, with amplification adjustable from 0% to 300%.
Constellation, Frequency Domain, and Time Domain graphs are available directly within the interface for visual signal analysis. Streams can be recorded and played back with full demodulation and graphing support, enabling post-capture review of signals of interest.
Get a Personalized Spectraware Demo*
See how Spectraware delivers real-time spectrum and signal analysis across your applications – and how Spectrum Viewer extends that capability to every SXM node in your network.
*Spectraware works only with the thinkRF RTSA and SXM. Windows & Linux compatible.
