Surveillance Systems

Surveillance System

Users can:
  • Conduct full spectrum scans
  • Distinguish between friendly and hostile signals
  • Create databases and signal libraries
  • Monitor the signal of interest
  • Demodulate the signal if required
  • Locate the source
Designed for:
  • On-site RF signal conditioning for communication systems
  • RF emissions analysis
  • Security scanning for unauthorized or rogue transmitters
  • Channel utilization analysis
  • Investigating use of the RF spectrum
  • Installing wireless networks

ThinkRF Surveillance System Datasheet

Download Now

Use Case

Use Case - Catching Bugs - Detecting and Locating Recording Devices to Secure Sensitive Information

Download Now

Solution Sheet

ThinkRF TSCM Solution Sheet

Download Now

Maintain Control of the RF Spectrum

Keep facilities secure and understand channel utilization for dynamic channel allocation with the ThinkRF Surveillance System. The fully integrated system provides users with a continuous RF surveillance solution designed for in-place monitoring, bug detection, and advanced technical surveillance applications.

Leveraging the computing power of a standard PC, the system includes a ThinkRF R5550 or R5750 Real-Time Spectrum Analyzer, leading Kestrel TSCM® Professional Software, a directional or omni-directional antenna, and other required equipment all stored in a sturdy and portable case.

Cost-effective, networkable, and always-on, the ThinkRF Surveillance System is easy to deploy in various locations on-premise or in the field. Multiple units can be connected over the network in a static or roaming configuration, providing greater coverage and increasing the likelihood of detection of unauthorized, short duration, low-powered, and intermittent signals in challenging environments.

Example of ThinkRF Surveillance System Deployment in an office building to detect and locate illicit listening devices (bugs)

High Probability of Detection

ThinkRF R5550 and R5750 Real-Time Spectrum Analyzers feature up to 27 GHz frequency range, 100 MHz real-time bandwidth, and 28 GHz/s sweep rate to allow users to detect known or unknown short duration, low powered, and intermittent signals.

Fully Integrated With Leading Software

Kestrel TSCM® Professional Software is a powerful, cost-effective, and full featured TSCM software that can be configured to detect and locate various signal standards and proprietary signal types. Protect sensitive information and remove illicit surveillance devices in government facilities, enterprises, and other organizations.

24/7 Continuous Deployment

Unlike traditional sweeps, multiple analyzers can be deployed in a static or mobile configuration to provide continuous, 24/7 monitoring of the spectrum environment within a facility. Advanced triggering capabilities immediately alert users to an unauthorized or rogue signal for further investigation, capturing activity that would typically be missed by common bug sweeping techniques.

Portable for Use On-Premise or in the Field

Weighing less than 6 lbs and measuring just 10.13 x 7.63 x 2.61 inches, ThinkRF Real-Time Spectrum Analyzers are portable and designed for use on-premise, carried in the field, or deployed on a vehicle. The entire system is easily stored in a compact and secure carrying case for further convenience when transporting the equipment.

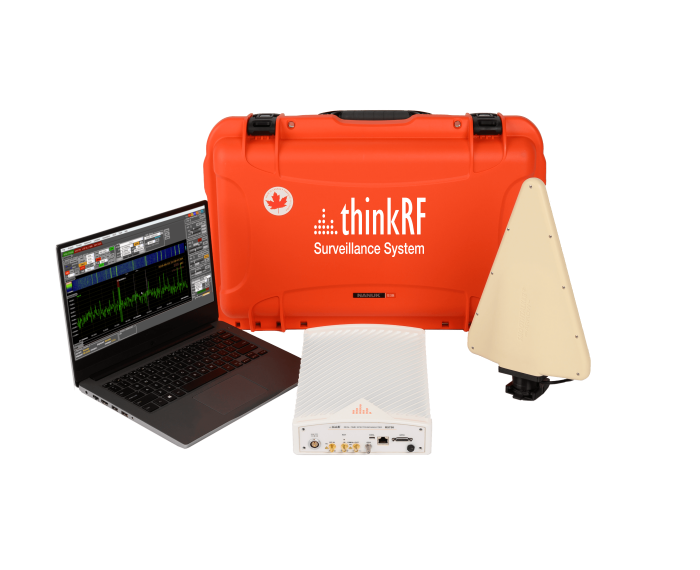

ThinkRF Surveillance System featuring R5750 analyzer, KESTREL TSCM Professional Software, and directional antenna

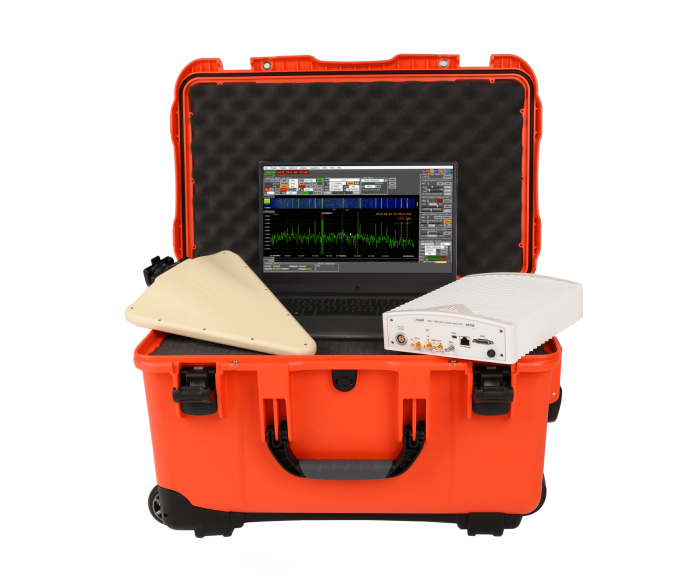

ThinkRF Surveillance System with R5750 Real-Time Spectrum Analyzer and Kestrel TSCM Professional Software with Directional Antenna

The System Incorporates

  • ThinkRF R5550 or R5750 Real-Time Spectrum Analyzers
  • Laptop
  • IP Networks for Multi-Sensor Deployments
  • Kestrel TSCM® Professional Software
  • Omni/Directional Antennas
  • Handheld Cases

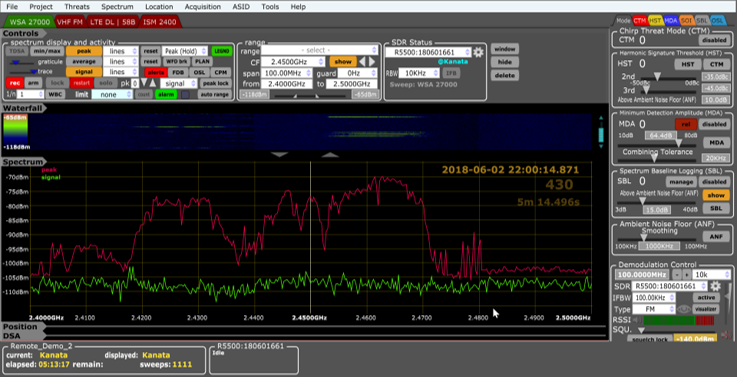

Screenshot of KESTREL TSCM Professional Software as part of ThinkRF Surveillance System

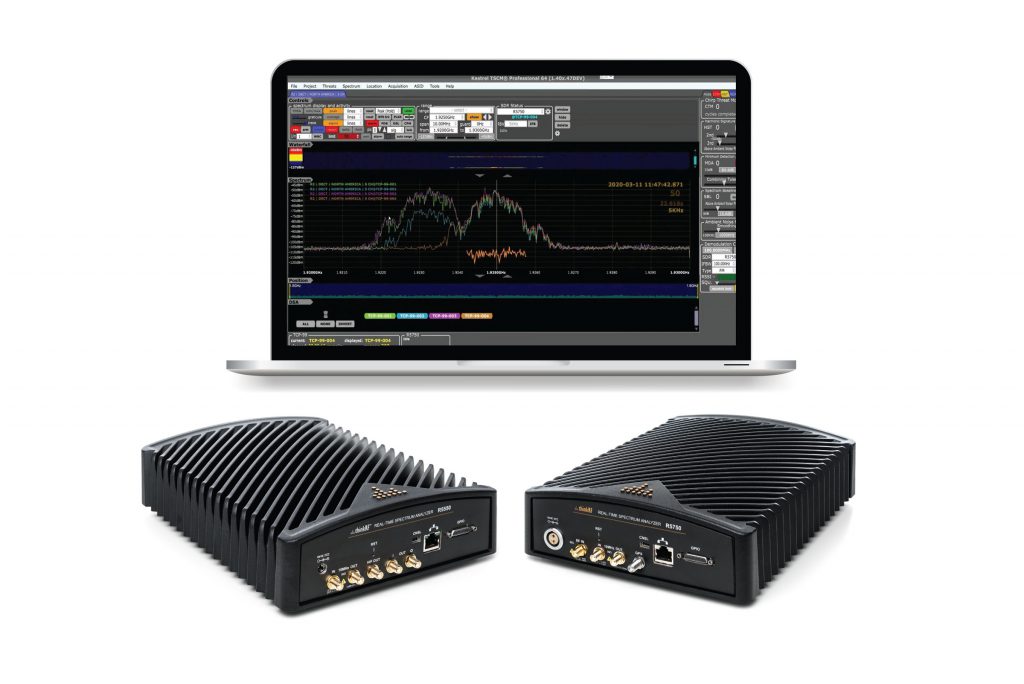

REAL-TIME SPECTRUM ANALYZERS FOR THE 5G mmWave NETWORKSReal-time triggering and acquisition memory!
  • 9 kHz to 27 GHz | Real-time bandwidth 160 MHz
  • 100 dB Dynamic Range | Silent (Fanless)
  • Built-in GPS option | Ethernet Connection | Light: 2.7 Kg (6 lbs)
  • Compact: 25.7 cm x 19.3 cm x 6.6 cm (10.1" x 7.6" x 2.6")
