Real-Time Spectrum Analysis (View)
Built for telecom regulators, mobile network operators (MNOs), and private network operators (PNOs), SXM’s Real-Time Spectrum Analysis lets users define frequency range, resolution bandwidth, and measurement parameters, then continuously scans and displays the configured spectrum with no post-processing delay. It offers multiple visualization modes – spectral plot, persistence plot, spectrogram, and time-domain – alongside built-in channel power, occupied bandwidth, and AM/FM demodulation measurements, with remote access from any location. Regulators use it to maintain a continuous record of spectrum activity across their jurisdiction without dispatching field teams, MNOs use it to detect interference and network anomalies faster than drive-testing allows, and PNOs use it to monitor the RF environment around their private network and respond to interference before service is impacted.
The challenge
- RF environments are dynamic – interference events, unauthorized signals, and network changes can appear and disappear within minutes
- Legacy spectrum analyzers require on-site operation and produce only point-in-time data – no continuous live view
- Broadband analysis across multiple frequency bands requires expensive, complex equipment setups
- Remote environments and critical infrastructure cannot be monitored economically with periodic site visits
- Post-processing delays insight and allows interference events to persist
How SXM helps
- User defines the frequency range, RBW, and measurement parameters – Spectraware continuously scans and analyzes the configured spectrum in real-time
- Delivers live spectrum data with no post-processing delay – what the RTSA captures is displayed immediately

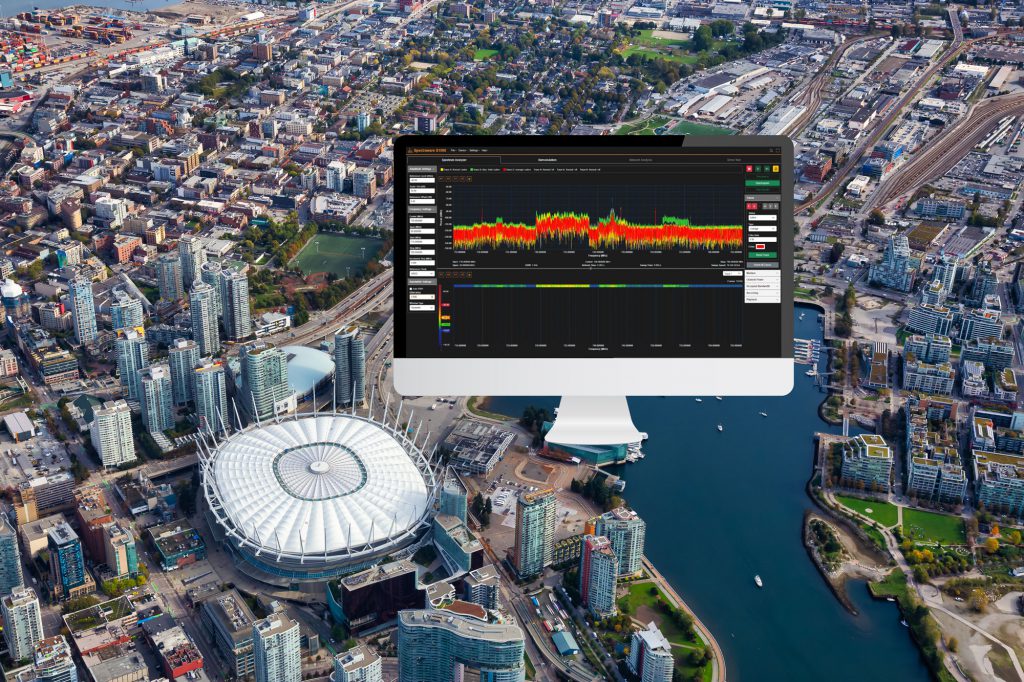

- Multiple visualization modes – spectral plot, persistence plot, spectrogram, and time-domain – for comprehensive signal analysis
- Built-in measurements include channel power, occupied bandwidth, and AM/FM demodulation
- Remote access to connected SXM from any location – no need to be physically on site
Who it’s for
Regulators
Maintain a continuous, empirical record of spectrum activity across your jurisdiction without dispatching field teams.
MNOs
Access real-time signal intelligence to detect interference and network anomalies faster than drive-test-based approaches allow.
PNOs
Monitor the RF environment surrounding your private network continuously and respond to interference events before service is impacted.
Key Industry Takeaways For Real-Time Spectrum & Signal Analysis
For Regulators
and Policymakers
• Improved interference detection
• RF emissions assessment
• Interference hunting
For Mobile Network Operators (MNOs)
• Improved interference management
• Service quality improvement
• Spectrum monitoring
• Interference hunting
For Private Network Operators (PNOs)
• Improved reliability
• Efficient resource allocation
• Enhanced network
• Performance/quality
• Enhanced network security
• Interference hunting
Real-Time Analysis of Spectrum and Signals to Enhance QoS
SXM (Spectrum eXperience Management) by thinkRF provides a comprehensive solution for real-time spectrum and signal analysis, delivering actionable insights that enable organizations to enhance their network operations and respond rapidly to interference, unauthorized transmissions, and compliance issues.
SXM is deployed by national regulators and mobile operators who depend on real-time spectrum visibility as a core operational requirement. ISED Canada uses SXM to deliver continuous, real-time spectrum analysis across the country – autonomously capturing 3GPP signal activity from vehicle-based nodes without requiring manual intervention or post-processing. TRC Jordan selected SXM for nationwide deployment, specifically to gain real-time, continuous visibility across Jordan’s wireless landscape. TELUS, one of Canada’s largest mobile network operators, has added SXM to its spectrum intelligence capabilities for ongoing real-time network monitoring.
Immediate Anomaly Detection
Real-time spectrum analysis enables organizations to instantly detect signal anomalies, unauthorized transmissions, and unexpected changes in spectrum activity – enabling rapid response before issues escalate into service disruptions.
Optimized Spectrum Use
By monitoring spectrum occupancy, organizations can identify underutilized bands and reallocate resources to areas with higher demand, ensuring efficient use of available spectrum.
Improved Quality of Service (QoS)
By detecting and mitigating issues promptly, real-time spectrum analysis enhances the overall quality of service, resulting in better user experiences. Spectral analysis ensures that signal integrity is maintained across the network.
Regulatory Compliance
Ensuring adherence to spectrum regulations is easier with continuous monitoring and real-time data, helping organizations avoid legal issues and penalties.
Informed Decision-Making
Real-time insights provide a solid foundation for making data-driven decisions on network management, expansion, and upgrades. Analyzing time domain signals and frequency domain data allows for more accurate planning and resource allocation.
Solving Key Problems
Characterize, optimize & protect vital RF networks with real-time actionable insights.
Signal Interference
Interference from various sources can significantly degrade network performance. Real-time spectrum analysis helps identify and mitigate these issues immediately. Signal analysis techniques ensure that interference in the frequency domain is promptly addressed.
Underutilized Spectrum
Without real-time spectrum analysis, spectrum resources can remain underutilized. SXM empowers organizations to optimize spectrum allocation and usage by utilizing data from real-time monitoring.
Quality of Service Issues
Delays in detecting and addressing signal issues can lead to poor service quality. Real-time monitoring enables the quick detection and resolution of issues, enhancing signal quality.
Regulatory Non-Compliance
Maintaining compliance with evolving spectrum regulations is challenging. SXM provides continuous monitoring to ensure compliance and avoid penalties, analyzing both time domain and frequency domain signals.
Real-Time Spectrum Analysis (View)
Regulators and
Policymakers
For regulators, real-time spectrum and signal analysis are crucial for managing spectrum resources effectively and ensuring compliance across licensed bands. SXM provides regulators with continuous monitoring tools to detect unauthorized and non-compliant transmissions, assess bandwidth utilization, identify adjacent channel interference, and enforce spectrum policy with real-time evidence.
Continuous Monitoring
Real-time data on spectrum usage allows regulators to detect unauthorized or non-compliant transmissions and take prompt action, ensuring proper use of the electromagnetic spectrum.
Bandwidth Utilization
Understanding how RF transmissions are being made in terms Bandwidth used for a given service ensures wireless transmissions are compliant
Adjacent channel Interference
Real-time spectrum analysis provides insights on power levels that leak into other radio services bands creating interference.
Efficient Spectrum Allocation
Detailed real-time insights help in making informed decisions about spectrum allocation, optimizing the use of available resources.
Policy Enforcement
SXM provides the tools needed to enforce compliance with spectrum regulations, ensuring fair and legal use of spectrum in terms of Bandwidth usage and signal quality.
Cross-Border Coordination
Facilitate international cooperation and manage cross-border spectrum issues effectively with real-time data.
Mobile Network Operators (MNOs)
MNOs need to maintain high-quality service and optimize their network operations continuously across complex, multi-band environments. SXM provides real-time interference detection and spectral analysis that enables MNOs to address signal issues before they impact customer experience, make data-driven decisions on resource allocation, and maintain continuous regulatory compliance.
Real-Time Interference Detection
Continuous monitoring enables MNOs to quickly detect and address, ensuring optimal network performance.
Enhanced QoS
By resolving signal issues in real-time, MNOs can ensure high quality of service, greater customer satisfaction. Spectral analysis and frequency domain data support the maintenance of high signal quality.
Strategic Planning
Real-time insights into spectrum usage help MNOs make data-driven decisions on network expansion, resource allocation, and technology upgrades.
Regulatory Compliance
Continuous monitoring ensures adherence to spectrum regulations, avoiding fines and legal issues.
Private Network Operators (PNOs)
PNOs require reliable and secure networks to support their operations across enterprise, industrial, and mission-critical environments. SXM delivers real-time signal analysis and interference detection that enables PNOs to maintain reliable network performance, allocate resources efficiently, detect unauthorized transmissions, and ensure compliance with all regulatory requirements.
Network Reliability
Real-time signal analysis helps PNOs maintain reliable network performance by promptly detecting and addressing signal issues.
Efficient Resource Use
Continuous monitoring and analysis of spectrum usage enable PNOs to allocate resources more effectively, optimizing network efficiency.
Interference Detection
Spectrum analysis provides a window into potential RF interference issues that impact existing critical wireless services.
Enhanced Security
Detect potential security threats and unauthorized transmissions in real-time, ensuring network integrity and protection.
Compliance Assurance
Continuous monitoring and real-time alerts help PNOs remain compliant with regulatory requirements, reducing the risk of legal penalties.
Why Rely on SXM Spectrum eXperience Management for Real-Time Spectrum & Signal Analysis (View)
Real-Time Spectrum & Signal Analysis with SXM by thinkRF provides organizations with the tools and insights needed to maintain high-performing, compliant, and secure networks. By offering real-time monitoring, detailed analytics, and advanced detection capabilities, SXM helps regulators, MNOs, and PNOs overcome the challenges of spectrum management and signal interference.
Frequently Asked Questions
Explore how SXM is transforming the way telecom regulators, mobile operators, and private network operators monitor and manage spectrum with real-time actionable network insights.
Ready to maintain network integrity, performance, and security?
thinkRF SXM is a proven spectrum monitoring solution empowering organizations to sustain optimal network performance.
