P120 Vehicular Power Conditioner

Power in-vehicle equipment through a standard vehicle power supply while protecting equipment from vehicular power transients

  • Input voltage range: +8 VDC to +32 VDC
  • Output voltage: + 12 VDC ± 5%
  • Rugged
  • MIL-STDPRF-28800 (Class 2: shock and vibration tests)
  • Compact: 131 x 62 x 34 mm (5.16” x 2.44” x 1.34“)
  • Light: 340 g (12 oz)
  • Output power: 36 W
  • 1 thinkRF P120 Vehicular Power Conditioner
  • Accessories vary depending on your Purchase Order:
  • 4’ Car Cigarette Lighter Plug to Female ML-XT Plug Power In Cable
  • 12’ Loose Leads, Stranded Solder to Female ML-XT Plug Power In Cable
  • 4’ Male ML-XT to LEMO Plug Power Out Cable
  • 4’ Male ML-XT to Barrel-Type Plug Power Out Cable

This thinkRF product is sold through thinkRF’s Authorized Sales Partners.

Maintenance Plan Plan for per unit per year



ENABLE MOBILE SPECTRUM ANALYSIS APPLICATIONS WITH thinkRF P120

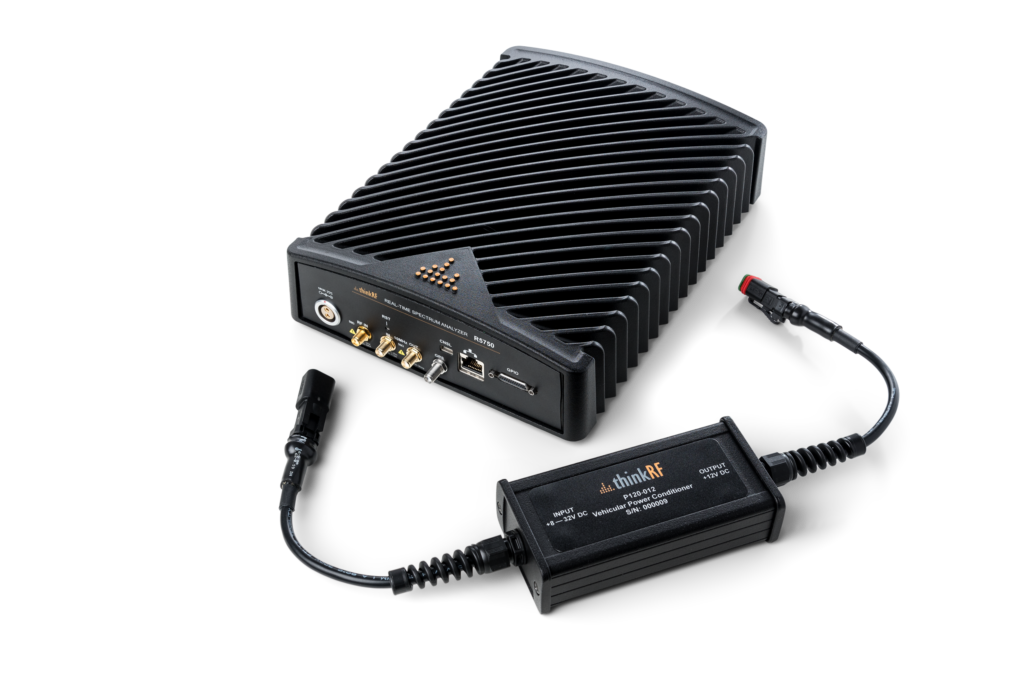

The thinkRF P120 Vehicular Power Conditioner allows users to power in-vehicle equipment through a standard vehicle power supply while protecting equipment from vehicular power transients. When combined with the thinkRF series of Real-Time Spectrum Analyzers, the thinkRF P120 Vehicular Power Conditioner enables mobile spectrum analysis applications such as RF drive testing, coverage mapping, interference hunting, and regulatory monitoring.

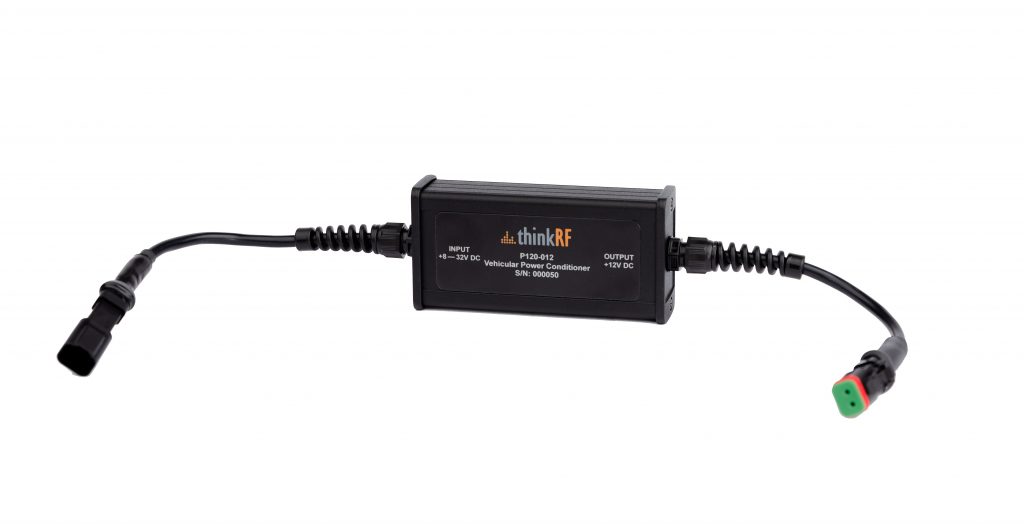

thinkRF P120 Vehicular Power Conditioner
SWaP

Portable Form Factor

Measuring 131 x 62 x 34 mm (5.16” x 2.44” x 1.34“) and weighing only 340 g (12 oz), the thinkRF P120 Vehicular Power Conditioner is compact, lightweight, and portable for easy use in any deployment scenario or vehicle, including military vehicles, vans, boats, or UAVs. The thinkRF P120 Vehicular Power Conditioner powers in vehicle equipment without adding significant size or weight to the solution.

INDUSTRY STANDARD

Connection Points & Enclosure

thinkRF P120 Vehicular Power Conditioner is designed to give a single regulated output of +12VDC under different input voltages ranging from +8V to +32V. The inputs and outputs are provided via strain-relief 16 AWG cables with 2-pin square ML-XT style Molex connectors. There is a choice of input using standard vehicle cigarette lighter style connector or loose lead stranded soldered cables. The output cable is terminated with a LEMO series connector.

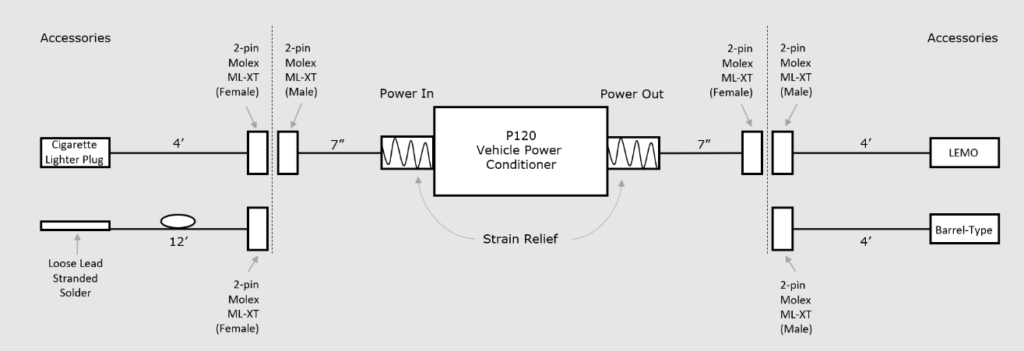

P120 Block Diagram - med
thinkRF P120 Vehicular Power Conditioner
Ready to Enable Mobile Spectrum Analysis Applications?

Protect your expensive electronics from vehicular power transients!
