Spectrum Analysis Software

S240v5 Real-Time Spectrum Analysis Software

Powerful, Intuitive, Easy-to-Use

  • Demodulation capabilities for spectrum and signal analysis
  • Three visualization modes – Spectrogram, Persistence & Time Domain
  • Seamless integration with ThinkRF Real-Time Spectrum Analyzers

Download the Product Brochure

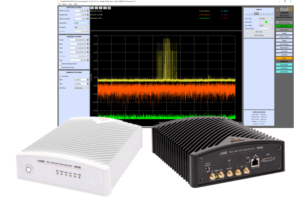

S240v5 Real-Time Spectrum Analysis Software with ThinkRF Analysis Platforms

Full-Featured Spectrum and Signal Analysis

Gain access to the performance, capabilities, and functions needed to conduct spectrum and signal analysis for regulatory and intelligence monitoring and telecom deployment optimization. Comprehensive data visualization modes, automated measurement tools, and demodulation capabilities provide users with enhanced usability in a cost-effective and intuitive application.

The ThinkRF S240v5 Real-Time Spectrum Analysis software features an advanced graphical user interface (GUI) that has been designed with the end-user in mind. Common functions, including Frequency, Bandwidth, and Amplitude are always visible, while all other settings are accessible with a minimum number of clicks to keep the view of the spectrum front and center.

Comprehensive Data Visualization

With 100 MHz, 40 MHz, 10 MHz, or 100 kHz real-time bandwidth (RTBW), the S240v5 software is powerful enough for any application. Featuring three visualization modes – Spectrogram, Persistence, and Time Domain – you can select the best view depending on your application and analysis requirements.

Demodulation for Signal Analysis

Conduct both spectrum and signal analysis and extract the original information-bearing signal from the carrier wave with demodulation capabilities. Gapless streaming allows seamless playback of demodulated audio which can be amplified from 0% – 300%. View Constellation, Frequency Domain, and Time Domain graphs in the clean, professional interface and record and play back streams with full demodulation and graphing support.

Powerful Measurement Tools

The S240v5 software provides the capabilities you need with a large collection of standard features and functions. Automatic measurements including Channel Power and Occupied Bandwidth, built-in horizontal and vertical cursors, multiple markers, and various traces are all available to analyze all signal related parameters.

Record and Save for Future Analysis

Easily save and record data for future in-depth analysis that is difficult to do in real-time. Users can either manually save data for any duration of time or set up triggers to automatically capture and save only if the signal falls within a specified range. This makes the file size more management and allows the user to capture only the signal of interest.

Demodulation Interface in the ThinkRF S240v5 Real-Time Spectrum Analysis Software

Benefits of the ThinkRF S240v5 Real-Time Spectrum Analysis Software

  • Seamlessly integrate with the ThinkRF R5550 and R5750 Real-Time Spectrum Analyzers without any additional set up
  • Cost-effective spectrum and signal analysis software that doesn’t sacrifice important functions or performance
  • Built-in software corrections for spur mitigation and IQ offset errors that could impact the accuracy of the data
  • Easy to use, intuitive software presented in a clean, professional package

Download for Free!

Please click here to request the link to download the ThinkRF S240v5 Real-Time Spectrum Analysis software for free.
