Intuitive and easy to use spectrum analysis software

The ThinkRF S240 Real-Time Spectrum Analysis Software features a completely redesigned graphical user interface (GUI) from previous versions. Designed with the end-user in mind, the S240 keeps common setting such as Frequency, Bandwidth and Amplitude visible at all times, making it easy for the user to get the right view. All other settings and functions are available through an intuitive menu system that minimizes the number of clicks and the time it takes to find the right functions, while still keeping the view of the spectrum front and center. Customized settings can be saved and reloaded to simplify the setup of common applications and uses.

Main display of the ThinkRF real-time spectrum analysis software application
Spectrogram, Persistence and Time Domain Views

Comprehensive data visualization in three different views

With 100 MHz, 40 MHz, 10 MHz or 100 kHz real-time bandwidth (RTBW), the S240 is powerful enough to give you the complete picture for any application, such as test and measurement, situational awareness, research or real-time spectrum monitoring. Featuring three visualization modes, you can select the best view depending on your applications and analysis requirements. These views include:

  • Spectrogram
  • Persistence
  • Time-domain

Improved measurement tools

With a large collection of standard features and functions, the S240 provides the capabilities you need for any application. Automatic measurements including Channel Power and the newly implemented Occupied Bandwidth mode are now available with a single click. Built in horizontal and vertical cursors, multiple markers and various trace types make it easy to analyze all signal related parameters right in the software, while improved correction algorithms ensure you’re getting an accurate view of the spectrum.

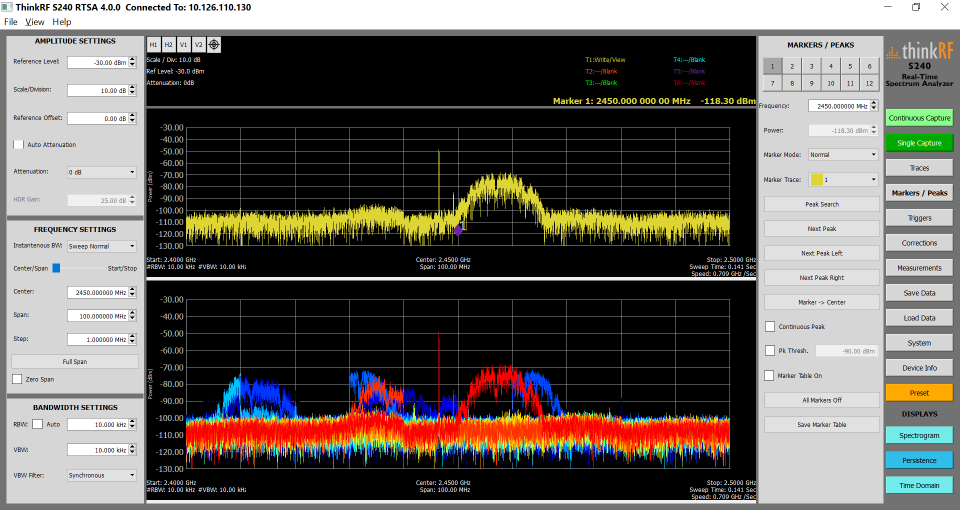

RF measurements Persistence View of the S240

Record and save for future analysis

Easily save and record data for future in-depth analysis that is difficult to do in real-time. The user can either manually save data for any duration of time, or set up triggers to automatically capture and save only if the signal falls within the specified range. This triggering capability makes the file size more manageable and allows the user to capture only the signal of interest, while ignoring the rest.

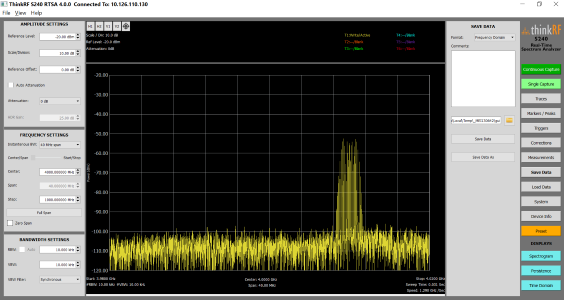

Easy saving capabilities in the S240 rf spectrum analyzer software

Benefits of the S240 Real-Time Spectrum Analysis Software

  • Seamlessly integrate with the R5550 Real-Time Spectrum Analyzer or R5750 Real-Time Spectrum Analyzer with GNSS without any additional set up
  • Cost-effective analysis software that doesn’t sacrifice important functions or performance
  • Easy to use, intuitive software presented in a clean, professional package
  • Built-in software corrections for spur mitigation and IQ offset errors that could impact the accuracy of the data

To learn more, please download the S240 Product Brochure
