RF SPECTRUM MONITORING

Control RF Spectrum with thinkRF

Capture more signals and control the RF spectrum with advanced Software-Defined Spectrum Analysis solutions from thinkRF.

High Performance Spectrum Monitoring Solutions from thinkRF

Today’s wireless landscape is constantly evolving and changing. Spectrum Monitoring Program Managers and other spectrum monitoring users need equipment that has the flexibility, functionality, and coverage to detect and locate RF interference, monitor the latest wireless signal standards, and keep up with the exponential growth in wireless communications technologies.

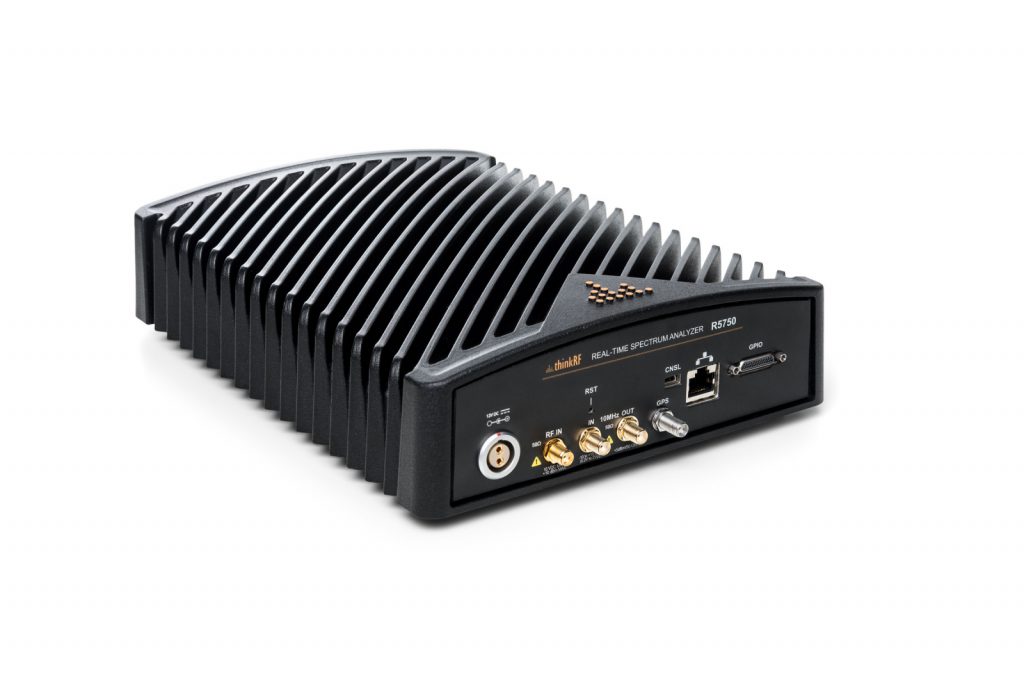

thinkRF R5750
4 star rating
4 star rating
4 star rating
4 star rating
4 star rating

Patented software-defined spectrum analysis platforms from thinkRF are designed and built for advanced spectrum monitoring applications. With our application ecosystem and proven integrations with leading software partners, we can help you build complete spectrum monitoring solutions for a wide variety of applications. You can upgrade thinkRF platforms without replacing built-in hardware to analyze new standards and extend useful life of equipment, hence reduce total cost of ownership.

CAPTURE MORE SIGNALS & CONTROL THE SPECTRUM WITH thinkRF

Overcome the complexity of spectrum monitoring, detecting and analyzing complex and wideband signals with the best price-performance ratio available on the market

Monitor in more locations with networking capabilities purpose built for remote and in-place monitoring across a wide geographic area

Never miss a signal due to slow sweep rates – the thinkRF platforms feature a sweep rate of 28 GHz/s and advanced triggering capabilities to track faint and short duration signals across the time or frequency domains

Keep up with new innovations and standards, such as 5G wireless, without replacing hardware components

Leverage the decreasing costs of computing and processing by connecting directly to any PC for digital signal processing, signal analysis, and other capabilities without the need for built in hardware

Detect wideband, short duration, and hopping signals with rapid sweep rates and advanced triggering capabilities

thinkRF Spectrum Monitoring Applications

Professional Development TSCM Group is a Canadian owned private corporation with 38+ years of professional experience delivering specialized Technical Surveillance Countermeasures (TSCM) services (aka bug sweeps), and standards based, industry certification training. The Kestrel TSCM Professional Software is a powerful, cost-effective, and full featured TSCM software to detect and locate low-powered, short duration, or sporadic signals of interest.

The thinkRF R5550 Real-Time Spectrum Analyzer integrates with the leading Kestrel TSCM Professional Software for an advanced technical surveillance countermeasures solution that protects your facility from unseen threats.

  • Detecting and locating illicit surveillance devices in government facilities, enterprises, and other organizations
  • Conducting 24/7, continuous facility monitoring from a central location
  • Protecting sensitive information and intellectual property from malicious actors
  • Continuous monitoring capabilities outside of regular working hours to increase the likelihood of detection
  • Operator centric, workflow based GUI that promotes excellent situational awareness and maximizes the probability of detection
  • Advanced display, search, and analysis capabilities for any number of independent spectral range windows

thinkRF Real-Time Spectrum Analyzers integrated with DynamicSignals Wideband RF Signal Analyzer Recording Systems allow application developers to extend their capabilities or build new products that meet customer requirements.

The GaGe and Signatec series of RF signal recording systems are complete with integrated receivers, digitizers, computer, storage, and programming-free spectrum analyzer software. These turn-key solutions provide customers with a very powerful and flexible signal recording system, while minimizing the risks of self-integrated systems. Get real-time streaming signal recordings to host RAID storage at up to 6 GigaBytes per second with live data snapshot monitoring.

The spectrum analyzer software, SpectraScopeRT, requires no programming and allows for control of receiver center frequency, bandwidth, and signal recordings. SpectraScopeRT features real-time FFT power spectrums (with peak hold and persistence), spectrograms, histograms, and time domain displays while recording, and upon recording playback.
SpectraScopeRT/SpectraViewRT signal recording and playback viewer applications for combined thinkRF downconverter and GaGe digitizer operational control with IQ time domain, I spectrum, IQ power spectrum, constellation, spectrogram, persistence, and histogram displays.


To accommodate customer integrated solutions, the digitizers and receivers have full control and data acquisition support via Mathworks MATLAB. Example programs are furnished to facilitate rapid signal processing and modulation analysis program development. Additional SDKs and example programs are provided for C/C# and LabVIEW.
Real-time streamed analysis and processing is fully supported with either an on board FPGA or a PCIe 3.0 GPU board. These solutions allow real-time processing on data streams exceeding 3 GB/s.

  • Signals intelligence applications
  • Wideband/narrowband signal analysis
  • High speed spectrum scanning
  • Sampling rates at up to 1 GigaSample per second with 2, 4 or 8 digitizing channels
  • Input bandwidths of up to 700 MHz for wideband analysis
  • Onboard sample memory up to 8 GS (16 GB)

LS telcom is the global leader in spectrum efficiency for more than 25 years. They deliver technologies and services to national and international regulatory bodies, mobile and broadcast operators, public safety, defense, and utilities. LS telcom provides world-leading broadcast network planning software and engineering, consulting, radio monitoring, and measurement services.

The LS OBSERVER solution, which leverages the thinkRF R5550 Real-Time Spectrum Analyzer for advanced spectrum analysis capabilities, can be used for a variety of spectrum monitoring applications.

The LS OBSERVER system consists of various Remote Monitoring Units (RMUs), one or more Central Control Units, and software for detailed measurement data analysis and statistics. Mobile, portable, transportable, fixed and airborne monitoring units are available. The LS OBSERVER system, which is built upon and includes the thinkRF R5550 Real-Time Spectrum Analyzer is available from LS telcom.

  • Network design, planning, implementation and optimization
  • Maximizing spectrum inventory and broadcast coverage optimization
  • Performing drive tests to locate the source of interference and to rapidly identify whether the real and planned coverage correspond, enabling you to adjust your network if needed
  • Big data analysis and comparison to support spectrum inventory, make evidence-based spectrum policy decisions, and retrieve usage information
  • Central monitoring software that controls and analyzes the data from all the monitoring units
  • Automatic violation detection software to alert the operator when the measured signal strength does not correspond to the reference signal strength at a given location
  • Unique data compression and storage capacity directly inside the measuring units

This thinkRF product is sold through thinkRF’s Authorized Sales Partners.

MODEL HIGHLIGHTED SPECS
thinkRF R5750 Real-Time Spectrum Analyzer (9 kHz – 8 GHz / 18 GHz / 27 GHz) with GPS/GNSS option
thinkRF R5550 Real-Time Spectrum Analyzer (9 kHz – 8 GHz / 18 GHz / 27 GHz) with RF Downconverter & Wideband IQ options
thinkRF D4000 RF Downconverter/Tuner (RF In: 24 – 40 GHz, Real-time Bandwidth: 500 MHz, built-in local oscillators)
thinkRF S1000 Spectrum Analysis Software

Ready to Demo the thinkRF Solution?

Capture more signals and control the RF spectrum with thinkRF!
