Know the Location and Time of Measurements
- Embedded Global Navigation Satellite System (GNSS) capabilities
- Frequency ranges of 27 GHz
- Real-Time Bandwidth (RTBW) up to 100 MHz
Mobile Applications for Wireless Situational Awareness
The thinkRF R5700 Real-Time Spectrum Analyzer with GNSS is built for mobile wireless situational awareness applications such as drive testing, coverage mapping, propagation analysis, direction finding & transmitter localization and vehicle based spectrum monitoring. With built in Global Navigation Satellite System (GNSS) capabilities, the R5700 analyzer enables engineers in the field to conduct in-depth analysis of complex waveforms while knowing the location and time of each measurement.

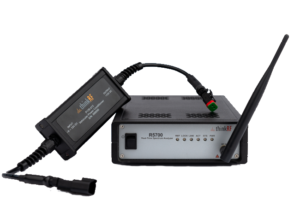

Combined with the thinkRF P120 Vehicular Power Conditioner and advanced software from our application ecosystem, users get a complete mobile spectrum analysis solution.
Built-In GNSS
Underpinning all mobile wireless situational awareness applications is the ability to know the location and time of measurements. The R5700 analyzer with GNSS synchronizes positional and temporal information with signal information to provide you with a complete map of the signal environment.
Network Deployment
thinkRF R5700 analyzers are networkable and suitable for network deployment for improved RF detection range and ability to make time synchronous spectral measurements. This enables emitter location and direction finding (DF) applications, propagation studies and other applications, and allows users to easily make geolocation measurements on signals of interest using either time (through time difference of arrival, TDOA) or power (through received signal strength, RSS). The R5700 analyzers can be synchronized using two different methods: GPS (for outside deployments) and using the 10MHz reference in a master-slave configuration (for indoor deployments or wherever GPS may be absent)
Designed for Portability
Measuring just 10.58 x 6.81 x 2.40 inches and weighing less than 6 pounds, the R5700 analyzer is the ultimate portable solution. The thinkRF R5700 is compact, lightweight, and low-powered, making it perfect for remote and distributed deployment or use in vehicles such as trucks, cars, military vehicles, UAVs, or boats.
Greater Coverage
Featuring 27 GHz frequency range, up to 100 MHz IBW, and 28 GHz/s stream rates, the thinkRF R5700 provides the best price-performance ratio on the market and the coverage required to analyze today’s complex, dense, and dispersed wireless signal environment.
Benefits of the R5700 Real-Time Spectrum Analyzer
- Integrated GNSS to know the location and time of measurements
- Reduced size, weight, and power requirements (SWaP) for increased portability
- The best price-performance ratio available on the market
- Increased functionality and greater frequency coverage than traditional handheld spectrum analyzers
To learn more about the thinkRF R5700 Real-Time Spectrum Analyzer, Contact Sales
