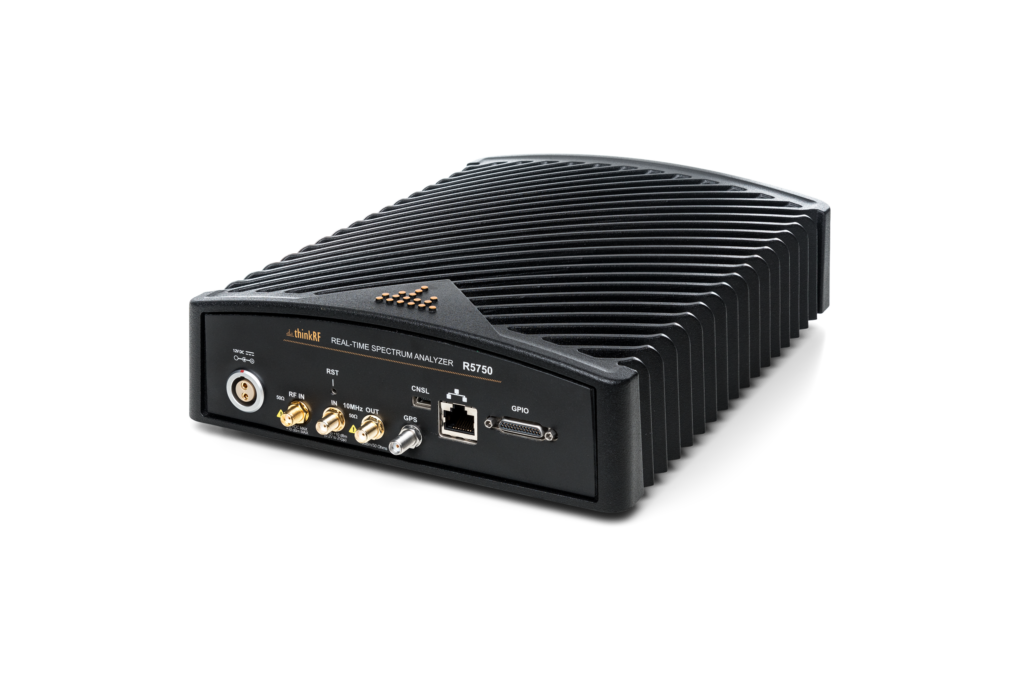

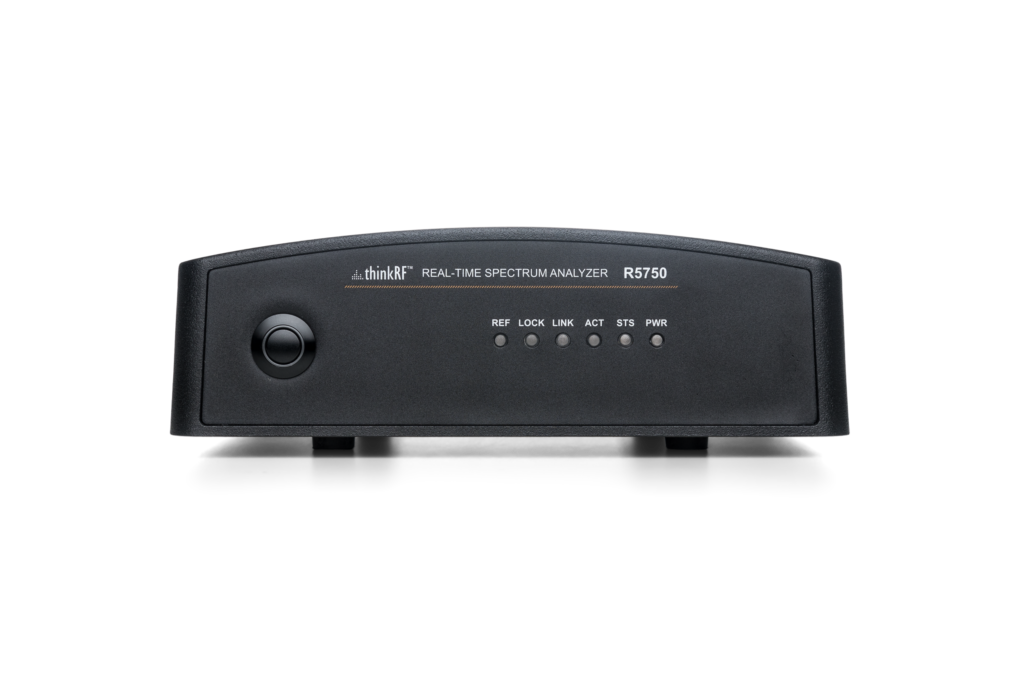

R5750 Real-Time Spectrum Analyzer
with GPS/GNSS

Know the position, location and time of the measurements
  • Frequency ranges of 9 kHz to 8 GHz / 18 GHz / 27 GHz
  • GNSS types supported: GPS, GLONASS, and BeiDou
  • Real-Time Bandwidth (RTBW) up to 100 MHz
  • Sweep rate of 28 GHz/s
  • 10 MHz input and output clock references for multi-unit synchronization
  • Dynamic range: 100 dB
  • Networkable: Ethernet connection
  • Compact: 257.3 x 193.7 x 60 mm (10.13” x 7.63” x 2.36“)
  • Light: 2.54 kg (5.6 lbs)
  • Low power consumption: 20 W @ 12V
  • thinkRF R5750 RTSA
  • Power adapter and cable
  • Straight-through Ethernet cable
  • USB console cable
  • Receiver antenna
  • GNSS antenna and cable

This thinkRF product is sold through thinkRF’s Authorized Sales Partners.

Maintenance Plan Plan for per unit per year

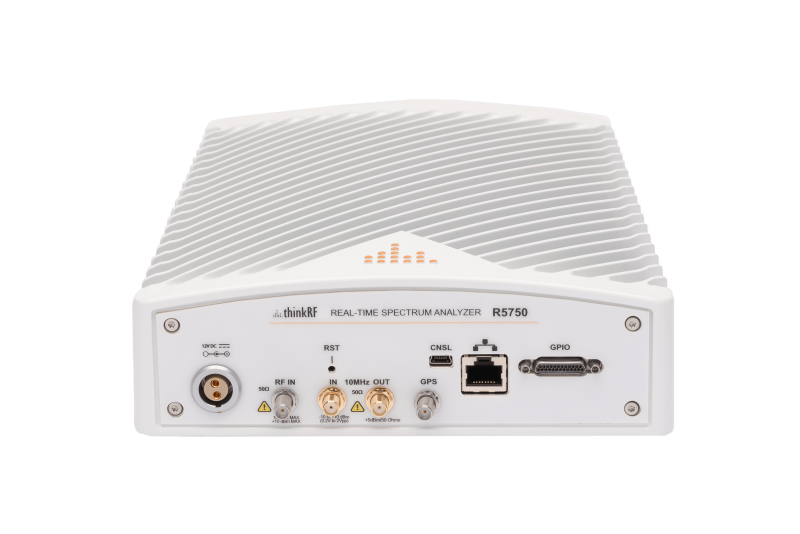

Weather Resistant

Weather resistant option is available for increased durability and ruggedness in challenging environments.

S1000 FREE Real-Time Spectrum Analysis software

Warranty Standard Warranty is 1 year. Extended Warranty is available by purchasing a Warranty Extension at time of purchase.


CERT

Calibration Certificate and Traceability Statement


Rack-Shelf

19″ rack shelf supports two horizontally mounted R5550 including fasteners

MOBILE RF APPLICATIONS FOR WIRELESS SITUATIONAL AWARENESS WITH thinkRF R5750

The thinkRF R5750 Real-Time Spectrum Analyzer with GPS is built for mobile wireless situational awareness applications such as RF drive testing, coverage mapping, propagation analysis, direction finding & transmitter localization and vehicle based spectrum monitoring. With built in GPS capabilities, the thinkRF R5750 Real-Time Spectrum Analyzer enables engineers in the field to conduct in-depth analysis of complex waveforms while knowing the location and time of each measurement.
Compact, lightweight, and fanless, the thinkRF R5750 Real-Time Spectrum Analyzer provides improved spectrum performance, lower power consumption, and increased portability for outdoor and mobile deployments. Weather Resistant option offers increased durability and ruggedness in challenging environments.
Combined with the advanced software from our application ecosystem, you can get a complete mobile spectrum analysis solution.

Deploy a Wireless Sensor Network (WSN) of the thinkRF R5750 Real-Time Spectrum Analyzer across a wide geographic area; in the field and/or on vehicles for wider coverage.

Geolocate and find direction of a signal of interest using Time Difference of Arrival (TDOA), Power Difference of Arrival (PDOA), Frequency Difference of Arrival (FDOA) or Angle of Arrival (AOA) techniques.

Improved spectral performance for better analysis.

Reduced size, weight, and power requirements (SWaP) for increased portability.

Increased functionality and greater frequency coverage than traditional handheld spectrum analyzers.

thinkRF R5750 Real-Time Spectrum Analyzer
BUILT-IN

GNSS/GPS

Underpinning all mobile wireless situational awareness applications is the ability to know the location and time of measurements. The thinkRF R5750 Real-Time Spectrum Analyzer with GPS synchronizes positional and temporal information with signal information to provide you with a complete map of the signal environment.

NETWORKED &

Remote Deployable

The thinkRF R5750 Real-Time Spectrum Analyzer is networkable and suitable for network deployment for improved RF detection range and ability to make time synchronous spectral measurements. This enables emitter location and direction finding (DF) applications, propagation studies and other applications, and allows users to easily make geolocation measurements on signals of interest using either time (through time difference of arrival, TDOA) or power (through received signal strength, RSS). The thinkRF R5750 Real-Time Spectrum Analyzer analyzers can be synchronized using two different methods: GPS (for outside deployments) and using the 10 MHz reference in a master-slave configuration (for indoor deployments or wherever GPS may be absent)

thinkRF R5750 Real-Time Spectrum Analyzer
thinkRF R5750 Real-Time Spectrum Analyzer
WIDE

Frequency Range

Featuring 27 GHz frequency range, up to 100 MHz IBW, and 28 GHz/s stream rates, the thinkRF R5750 Real-Time Spectrum Analyzer provides the best price-performance ratio on the market and the coverage required to analyze today’s complex, dense, and dispersed wireless signal environment.

SWaP

Compact & PC-Driven

Leverage advances in computing and networking by connecting to any standard PC. The easily upgradable the thinkRF R5750 Real-Time Spectrum Analyzer is compact, lightweight, and low power, making it perfect for remote and distributed deployment or use in vehicles such as trucks, cars, military vehicles, UAVs, or boats. The emphasis on quality, usability, and design provides an alternative to traditional, bulky spectrum analysis hardware when deployed in the lab, out in the field, or in a vehicle for mobile applications.

thinkRF R5750 Real-Time Spectrum Analyzer
thinkRF R5750 Real-Time Spectrum Analyzer
APIs & PROTOCOLS

Proven Integrations

thinkRF and its application ecosystem helps developers, engineers, and program manager see the full picture in complex spectrum environment. thinkRF has a wide variety of application partners depending on your requirements.

BEST PRICE – PERFORMANCE RATIO

on The Market

Enable a wide range of spectrum analysis applications while staying on budget with the best price-performance ratio available. Up to 27 GHz frequency range, 160 MHz IBW, 28 GHz/s stream rate, and a deep dynamic range means the thinkRF R5750 Real-Time Spectrum Analyzer can capture and analyze complex modern waveforms in real-time.

thinkRF R5750 Real-Time Spectrum Analyzer
Ready to Demo The thinkRF R5750?

Know the position, location and time of the measurements and underpin all mobile wireless situational awareness applications!
