CBRS TEST & DEPLOYMENT

Build Better CBRS Networks with thinkRF

Deploy and optimize CBRS wireless networks with software-defined spectrum analysis solutions from thinkRF.

CONTACT US

Powerful Capabilities for CBRS Networks

Citizens Broadcast Radio Service (CBRS) is a 150 MHz wide broadcast band in the 3.5 GHz band. Deploy new wireless networks, optimize existing infrastructure, and locate disruptive RF interference with an integrated CBRS Test & Deployment Solution from thinkRF and CelPlan.

Designed to be cost-effective and portable, the solution allows RF Engineers to use the same hardware for both spectrum analysis and wireless technology scanning, reducing cost and resources required for mobile and RF drive test applications.

thinkRF CBRS Test & Deployment Applications

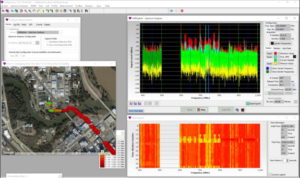

CelPlan is a leading provider of radio frequency planning & optimization tools, value-added consulting, engineering, and training services to the wireless industry. Whether in the lab, facility, field or across the city, CellSpectrum™ is the only platform that enables universal spectrum analysis and RF path characterization for all wireless communications. The advanced mobile spectrum analysis solution allows for comprehensive drive testing and coverage mapping capabilities.

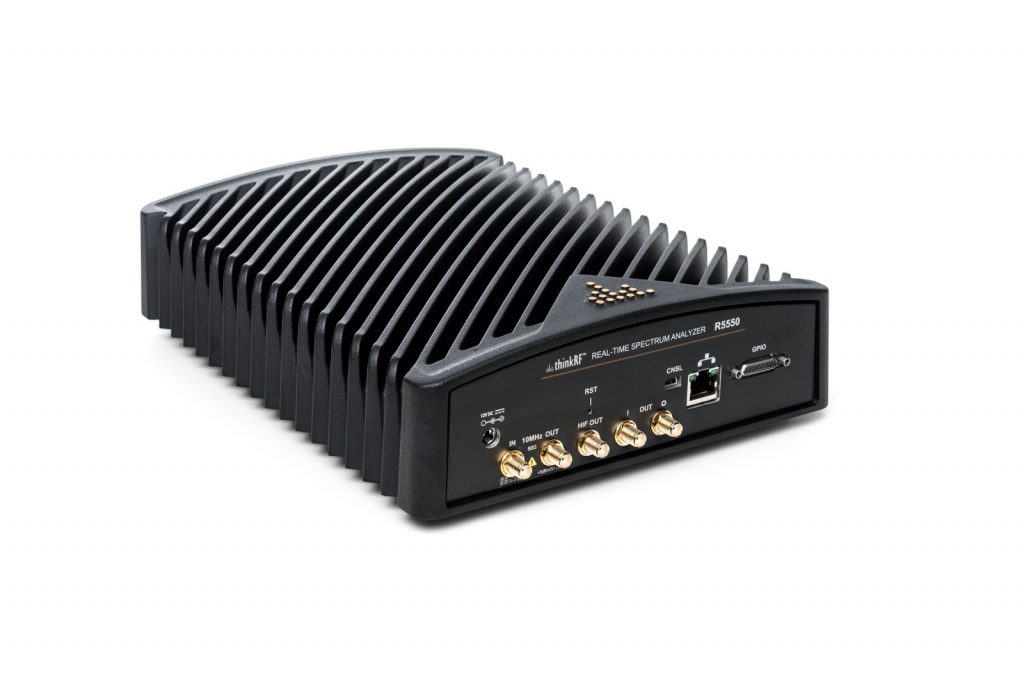

Combined with the thinkRF R5550 Real-Time Spectrum Analyzer, the advanced CelPlan software enables a number of mobile and RF drive test applications.

  • Base planning and optimization
  • Capacity planning of multi-technology networks
  • Real-time acquisition of geotagged spectrum
  • Network performance and coverage mapping
  • RF interference hunting
  • RF propagation characterization
  • Performance evaluation and benchmarking
  • Simultaneously scan multiple bands of multiple technologies
  • Collect and process multiband spectrum from 9 kHz to 40 GHz
  • Capture location and time data for all measurements
  • View data live or access stored data for deeper analysis
  • Run the solution autonomously without operator assistance
  • Easily upgrade for new technologies with software updates

This thinkRF product is sold through thinkRF’s Authorized Sales Partners.

MODEL HIGHLIGHTED SPECS
thinkRF R5750 Real-Time Spectrum Analyzer (9 kHz – 8 GHz / 18 GHz / 27 GHz) with GPS/GNSS option
thinkRF R5550 Real-Time Spectrum Analyzer (9 kHz – 8 GHz / 18 GHz / 27 GHz) with RF Downconverter & Wideband IQ options
thinkRF D4000 RF Downconverter/Tuner (RF In: 24 – 40 GHz, Real-time Bandwidth: 500 MHz, built-in local oscillators)
thinkRF Custom Products Full turnkey design and manufacturing to your specifications while reducing your cost, risk, and time-to-market
